Description

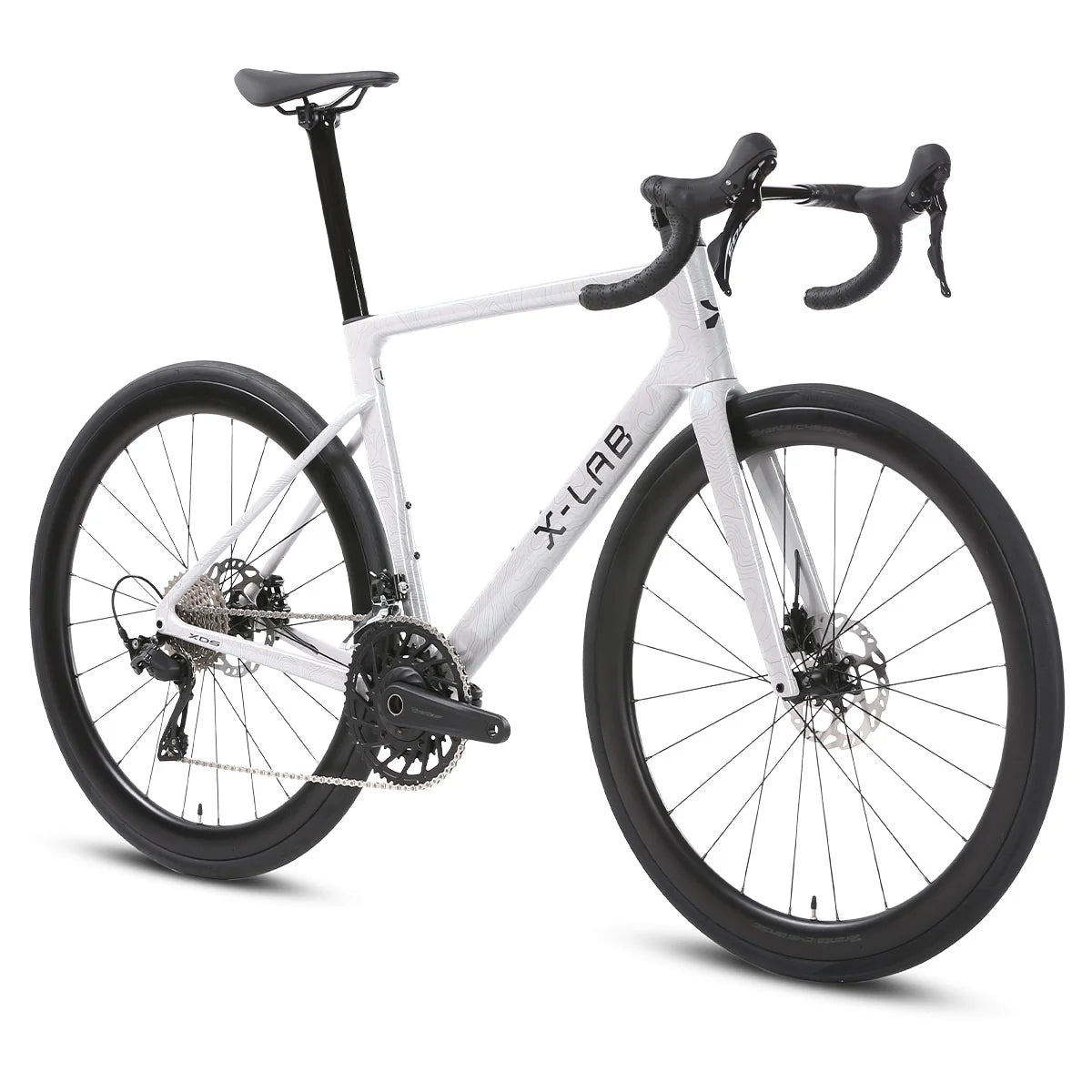

XDS X-LAB RS7 105 Road Bike – Angel Wing White
The XDS X-LAB RS7 105 is a performance-focused carbon road bike that combines aerodynamic efficiency, responsive handling and impressive specification. Its full-carbon frame and fork provide a lightweight, responsive platform, while the integrated carbon cockpit and aero-profile seatpost give the RS7 a clean, race-inspired appearance.
Finished in Angel Wing White, the RS7 combines Shimano 105 12-speed mechanical shifting with a Branta alloy power meter crankset and Branta C50 Base carbon wheelset. With 700x32c tyres and clearance for up to 32mm, it offers an excellent balance of speed, comfort and everyday road versatility.
Key Features
- Full XDS carbon frame and fork
- Shimano 105 2x12-speed mechanical drivetrain
- Branta 52/36T alloy power meter crankset
- Integrated Apple Find My anti-theft technology
- Shimano 105 hydraulic disc brakes
- Branta C50 Base carbon wheelset
- Branta R332 700x32c tyres
- Fully integrated Branta carbon handlebar and stem
- XDS aero-profile carbon seatpost
- Wide-range 11-34T cassette
- Maximum 32mm tyre clearance
- Lightweight 8.49kg complete bike in size L
Full Carbon & Aero Performance
The RS7's full-carbon frame and fork deliver a responsive and efficient ride, while the integrated carbon cockpit and aero-profile seatpost create a clean, aerodynamic package. Its balanced geometry provides confident handling without compromising long-distance comfort.
Shimano 105 & Built-In Power Meter
Shimano 105 12-speed mechanical shifting delivers reliable, precise performance across a wide range of terrain. The Branta 52/36T crankset includes an integrated dual-sided power meter, giving riders valuable training data straight out of the box.
Fast & Versatile Road Performance
The Branta C50 Base carbon wheelset adds aerodynamic performance, while 700x32c tyres provide a great balance of speed, grip and comfort. Hydraulic disc brakes provide confident stopping power for everything from fast group rides to longer endurance sessions.
Specification
| Category | Specification |
|---|---|
| Frame | XDS Carbon Frame, Toray T700 |
| Fork | XDS Carbon Fork, Toray T700, 100x12mm thru-axle |
| Handlebar / Stem | Branta Carbon Integrated |
| Seatpost | XDS Carbon, Aero Profile |
| Rear Derailleur | Shimano 105 RD-R7100, 12-speed |
| Front Derailleur | Shimano 105 FD-R7100 |
| Shifters | Shimano 105 ST-R7120 |
| Crankset | Branta Alloy Power Meter, 52/36T, 24mm steel spindle |
| Power Meter | Integrated dual-sided Branta power meter with Apple Find My anti-theft technology |
| Cassette | Shimano 105, 11-34T, 12-speed |
| Chain | SUMC SX12 |
| Bottom Bracket | BSA 24mm |
| Brakes | Shimano 105 BR-R7170 hydraulic disc |
| Rotors | Shimano SM-RT70, 160mm front / 160mm rear |
| Wheelset | Branta C50 Base carbon, stainless steel spokes |
| Tyres | Branta R332, 700x32c, 60TPI |
| Maximum Tyre Clearance | 32mm |
| Saddle | Branta R302, steel rails |
| Weight | 8.49kg, size L |
| Colour | Angel Wing White |
Sizing
| Size | Recommended Rider Height |
|---|---|
| XS (46cm) | 148–158 cm |
| S (50cm) | 158–168 cm |
| M (54cm) | 168–176 cm |
| L (56cm) | 176–183 cm |
| XL (58cm) | 183–191 cm |
| XXL (61cm) | 191–202 cm |
Sizing is a general guide only. Rider proportions, riding position and personal preference can affect the ideal bike size. If you're between sizes, we recommend contacting our team for advice.
Specifications are subject to change without notice. Components may be substituted by the manufacturer due to availability.
