Description

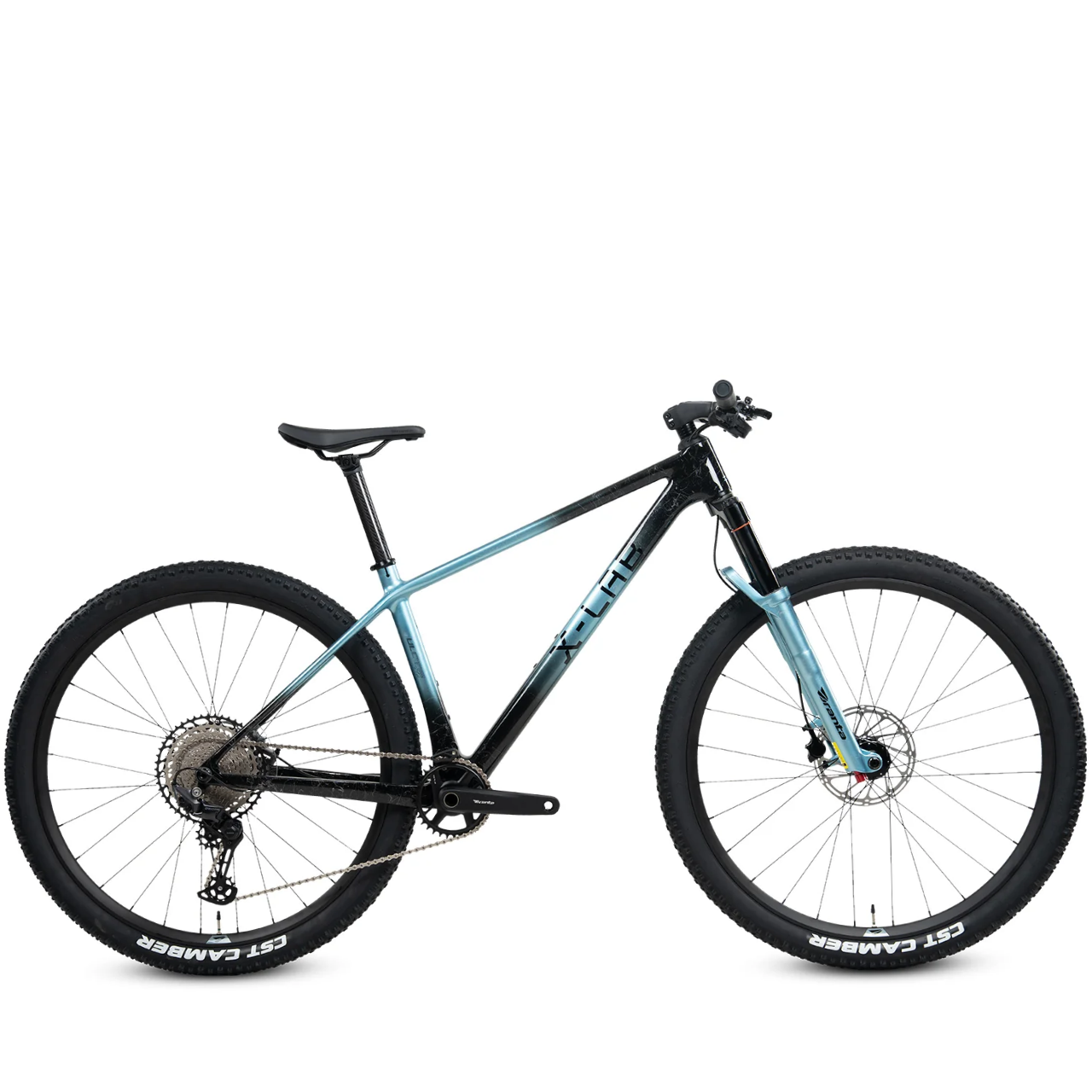

X-LAB MT5 Carbon Hardtail Mountain Bike | Glacier Blue
ā 12 Months Unlimited Free Servicing + Extended Warranty Included
The X-LAB MT5 is a carbon hardtail mountain bike built for riders who want a lightweight, capable platform without stepping into full suspension territory. Finished in Glacier Blue, the MT5 combines a full carbon frame with a modern Shimano Deore 12-speed drivetrain and a wide range wheel and tyre setup, delivering genuine trail performance at an impressively low 11.39kg.
Lightweight Carbon Platform
At the heart of the MT5 is a full carbon frame, paired with a Branta magnesium suspension fork featuring an air spring and adjustable rebound. The fork offers 100mm of travel for 27.5" wheel configurations or 120mm of travel for 29" setups, smoothing out trail chatter and small impacts while keeping the front end responsive. A Branta carbon seatpost and fully integrated carbon stem, available in 65, 75, or 85mm lengths with a 760mm wide handlebar, complete a lightweight, race ready cockpit.
Shimano Deore 12-Speed Precision
The MT5 runs a Shimano Deore RD-M6100-SGS rear derailleur, controlled through a Shimano Deore SW-M6100-R shifter, giving riders smooth, reliable 12-speed shifting across technical terrain. A wide range CS-M9012 11-50T cassette provides genuine climbing gears alongside strong top end speed, while the Branta aluminium crankset (170mm, 34T) features a narrow wide tooth profile to help keep the chain secure over rough ground.
Confident Stopping Power
Braking comes from Branta C5Pro hydraulic brakes with 2-piston calipers, paired with Branta steel rotors (180mm front, 160mm rear) for strong, consistent stopping power when the trail gets technical. This setup gives riders the confidence to push harder on descents, knowing the brakes will deliver reliable control when it counts.
Trail Ready Wheels and Tyres
A Branta aluminium XC+ wheelset is paired with CST Serratus 29 x 2.25" tyres, offering a reliable balance of rolling efficiency and grip across varied trail surfaces, whether you're climbing, cornering, or opening it up on faster sections.
Key Features
- Full carbon frame
- Branta magnesium suspension fork, air spring, adjustable rebound (100mm/120mm travel)
- Shimano Deore 12-speed drivetrain
- Wide-range CS-M9012 11-50T cassette
- Branta aluminium crankset, 170mm, 34T, narrow-wide teeth
- Branta C5Pro hydraulic brakes, 180mm/160mm rotors
- Branta aluminium XC+ wheelset
- CST Serratus 29 x 2.25" tyres
- Branta carbon integrated stem and seatpost
- Lightweight complete build: 11.39kg
- Colour: Glacier Blue
Backed by over 40 years of family owned expertise, every X-LAB MT5 from bikes.com.au comes with 12 months of unlimited servicing and extended warranty, so you can hit the trails with total confidence.
Specifications
| FramesetĀ | |
| Frame | XDS Carbon Frame |
| Fork |
Branta Magnesium Suspension Fork, Air Spring, Rebound Adjustable, 100mm Travel for 27.5''/ 120mm Travel for 29''
|
| Travel |
Front: 100mm
|
|
Drivetrain
|
|
| Rear Derailleur |
Shimano Deore RD-M6100-SGS, 12-Speed
|
| Shifters |
Shimano Deore SW-M6100-R
|
| Crankset |
Branta Aluminium Crankset, 170mm Length, 34T, Narrow-wide teeth
|
| Chain |
SUMC
|
| Bottom Bracket |
BSA 24mm
|
| Cassette |
CS-M9012, 11-50T
|
|
Brake System
|
|
| Brakes |
Branta C5Pro Hydraulic Brakes, 2 Pistons Caliper
|
| Disc Rotor - Front |
Branta Steel Rotors - 180mm
|
| Disc Rotor - Rear |
Branta Steel Rotors - 160mm
|
|
Wheelset
|
|
| Wheelset |
Branta Aluminium XC+ Wheelset
|
| Tyre |
CST SERRATUS 29x2.25, 30TPI
|
|
Cockpit
|
|
| Handlebar |
One Piece Cockpit - Carbon
|
| Stem |
One Piece Cockpit - Carbon
|
| Grips |
Standard Grips
|
|
Other
|
|
| Seatpost |
Branta Carbon 31.6mm Seatpost
|
| Seat |
Standard Seat
|
| Weight (KG) |
11.39KG
|
*Specification are subject to change at anytime
