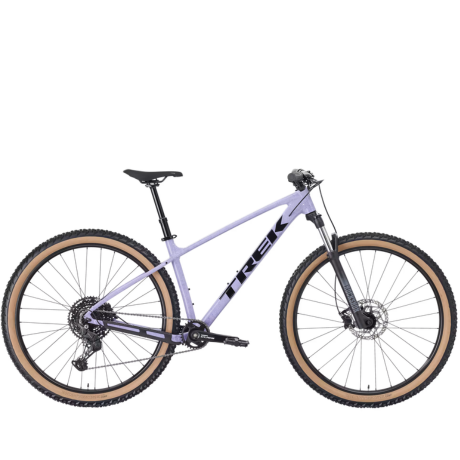

Trek Marlin 6 Gen 3 - Gloss Lavender Haze

$1,299.00
Click&Collect
No Delivery Available

Description

Trek Marlin 6 Generation 3: Elevate Your Trail Riding Game

Discover the Trek Marlin 6 Gen 3, your ultimate companion for trail mastery and versatile daily commutes. With its refreshed slacker frame geometry, navigating steep descents becomes more intuitive, while the enhanced suspension fork smooths out the rough patches of your rides. Thanks to integrated rack and kickstand mounts, personalizing this adaptable bike with accessories is a breeze.

Ideal For: This bike is designed for riders seeking a trail bike that boosts confidence on uneven terrains and doubles as a reliable commuter for work or school.

Technological Advantages:

  • Sports a lightweight aluminum frame designed with contemporary trail-riding geometry for improved control and internal cable routing for protection and a clean aesthetic.
  • A 100 mm RockShox Judy suspension fork absorbs trail irregularities, ensuring a smooth ride over rocks, roots, and bumps.
  • Features 10-speed Shimano CUES shifting for seamless gear changes and hydraulic disc brakes for dependable stopping power under all conditions.

The Verdict: The Marlin 6 is the go-to trail bike for riders aiming to elevate their off-road skills, offering the reliability and adaptability to transition smoothly from dirt paths to daily commutes.

Why You'll Admire It:

  • The latest Marlin Gen 3 design enhances trail performance with increased tyre clearance, internal dropper post compatibility, a ThruSkew rear axle, and updated geometry for greater stability at speed and on steep terrain.
  • Equipped with a RockShox fork providing 100 mm of suspension, it transforms challenging trail features into a comfortable ride.
  • Built-in rack and mudguard mounts simplify the addition of accessories, allowing this mountain bike to serve as a durable commuter.
  • Internal cable routing not only maintains an uncluttered look but also facilitates the installation of a dropper post for on-the-go saddle adjustments, boosting your confidence during descents.
  • Marlin models in XS sizes feature a curved top tube and lower standover height, making it easier for riders of smaller stature to get on and off the bike.

Step into the world of trail riding with the Trek Marlin 6 Gen 3 - Galactic Grey to Lithium Grey Fade, where confidence, capability, and versatility collide to deliver an unmatched riding experience on and off the trail.



Trek Marlin 6 Gen 3 Specification

*Please Note: Specification changes can occur without notice. This bike currently comes with Black Tyres, not Tan Wall Tyres!


Description
Frame

Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

Size: S,M,M/L,L,XL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

Fork



Size: XS , S
RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel

Size: M,ML,L,XL
RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Hub - Front Formula DC-20, Alloy, 6-Bolt, 100mm ThruSkew
Hub - Rear Formula DC-22, Alloy, 6-Bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer Rear 173x5 mm QR
Rim - Front Bontrager Kovee, double-wall, Tubeless-Ready, 28-Hole, 23 mm width, Presta valve
Rim - Rear Bontrager Kovee, double-wall, Tubeless-Ready, 32-Hole, 23 mm width, Presta valve
Tyre

Size: XS , S
Maxxis IKON, Tubeless Ready, EXO casing, Folding Bead, 60 tpi, 27.5x2.35''

Size: M,ML,L,XL
Maxxis Rekon Race, Tubeless Ready, EXO Casing, Folding Bead, 60 tpi, 29x2.35"

Shifter Shimano U6000, 10-speed
Rear Derailleur Shimano CUES U6000 GS
Crank

Size: XS,S,M,ML
Shimano U4000, 30T, 170 mm length

Size: L , XL , XXL
Shimano U4000, 30T, 175 mm length

Bottom Bracket Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette Shimano CUES LG300, LinkGlide, 11-48T, 10-Speed
Chain Shimano LG500
Pedal VP-536 nylon platform
Saddle Bontrager Verse Short, Stainless Steel Rails
Seatpost

Size: XS,S
TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm, 350 mm length

Size: M
TranzX JD-YSI34, 125 mm travel, internal routing, 34.9 mm, 405 mm length

Size: M/L,L,XL
TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm, 456 mm length

Handlebar

Size: XXS , XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width

Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width

Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Grips

Trek Line Comp, Nylon Lock-

Stem

Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length

Size: M , ML , L

Bontrager Comp, 31.8 mm, Blendr Compatible, 7-degree, 50mm length

Size: XL

Bontrager Comp, 31.8 mm, Blendr Compatible, 7-degree, 60mm length

Head Set

Semi-integrated, 1-1/8"

Brake Rotor

Size: XS , S , M , ML , L , XL
Shimano RT26, 6-bolt, 160 mm

Size: M , ML , L , XL
Shimano RT26, 6-bolt, 180 mm

Brake Set

Shimano MT200 hydraulic disc

Weight

M - 15.00 kg / 33.07 lbs

Weight Limit

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).


Trek Marlin 6 Gen 3 Sizing

Size Rider Height Inseam
XS 145 - 155 cm (4'9" - 5'1") 69 - 73 cm (27" - 29")
S 155 - 165 cm (5'1" - 5'5") 74 - 78 cm (29" - 31")
M 165 - 176 cm (5'5" -5'9") 79 - 83 cm (31" - 33")
M/L 173 - 180 cm (5'8" - 5'9") 79 - 83 cm (31" - 33")
L 177 - 188 cm (5'10" - 5'11")? 81 - 86 cm (32" - 34")
XL 188 - 195 cm (6'2" - 6'5") 89 - 91 cm (35" - 36")


Trek Marlin 6 Gen 3 - Geometry

Sizing Table
