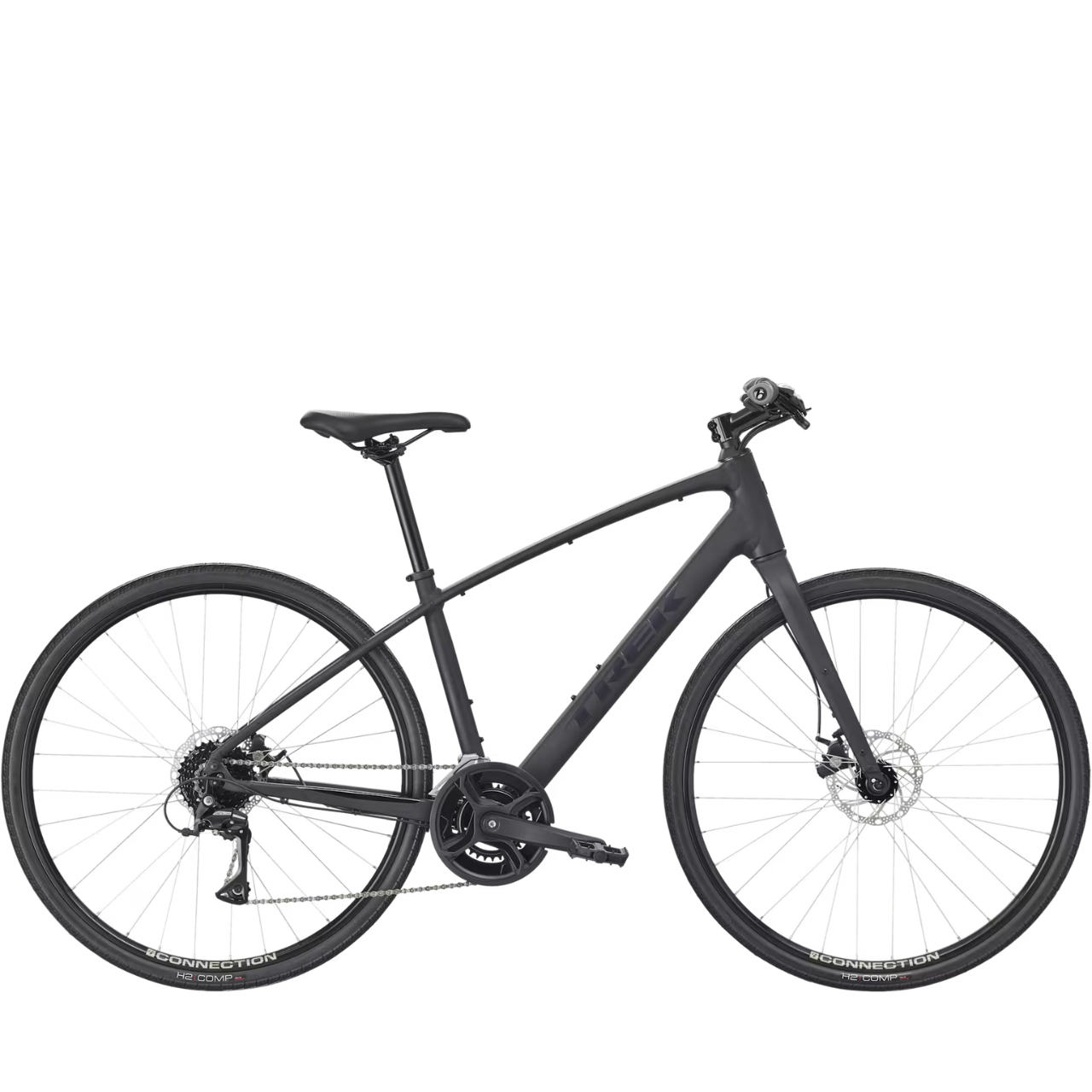

Trek FX 1 Stepover Gen 4 – Darkstar
Looking for a bike that can do it all—without breaking the bank? The Trek FX 1 Stepover Gen 4 is a lightweight, dependable hybrid that’s built for city cruising, weekend workouts, and everything in between.
Whether you're commuting to work, riding for fitness, or just rolling to the café, the FX 1 delivers a smooth, confident ride. Its lightweight aluminium frame makes it easy to handle, while disc brakes give you reliable stopping power in any weather. A wide gear range helps you tackle hills with ease, and there are plenty of mounts for racks, fenders, and more to make it your own.
Finished in a sleek Darkstar colourway, this bike looks as sharp as it rides.
Perfect for:
✔️ Fitness riders
✔️ Commuters
✔️ Everyday cruisers
Key Features:
-
Lightweight aluminium frame with a step-over design for easy on/off
-
Reliable disc brakes for confident stopping
-
21-speed drivetrain for tackling varied terrain
-
Mounts for racks, fenders, kickstands and more
-
Sleek Darkstar finish for a modern, understated look
If you’re after a capable and comfortable all-rounder that fits your life (and your budget), the Trek FX 1 Stepover Gen 4 is ready to roll.
Specification
| Frameset | |
| Frame |
Size: S, XL, XS, L, M
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
|
| Fork |
Size: S, XL, XS, L, M
FX Steel, Flat-mount Disc, Rack Mounts, 410mm Axle to Crown, ThruSkew 5mm QR
|
| Wheels | |
| Front Hub |
Size: S, XL, XS, L, M
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
|
| Front Skewer |
Size: S, XL, XS, L, M
139x5 mm bolt-on
|
| Rear Hub |
Size: S, XL, XS, L, M
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
|
| Rear Skewer |
Size: S, XL, XS, L, M
152x5mm Quick Release
|
| Tyre |
Size: S, XL, XS, L, M
Bontrager H2 Comp, Wire Bead, 30tpi, 700c x 35mm
|
| Drivetrain | |
| Shifter |
Size: S, XL, XS, L, M
Shimano EF500, 2-speed
Size: S, XL, XS, L, M
Shimano EF500, 8-speed
|
| Front Derailleur |
Size: S, XL, XS, L, M
Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull
|
| Rear Derailleur |
Size: S, XL, XS, L, M
Shimano Acera M3020-8, 40T max cog
|
| Crank |
Size: S, XL, XS, L, M
Forged alloy, 46/30, 170 mm length
|
| Bottom Bracket |
Size: S, XL, XS, L, M
Sealed cartridge, 68 mm
|
| Cassette |
Size: S, XL, XS, L, M
Shimano 8-speed, 12-32T
|
| Chain |
Size: S, XL, XS, L, M
KMC Z8.3
|
| Pedal |
Size: S, XL, XS, L, M
Wellgo nylon platform
|
| Components | |
| Saddle |
Size: S, XL, XS, L, M
Bontrager Sport
|
| Seatpost |
Size: S, XS, M
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Size: XL, L
Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length
|
| Handlebar |
Size: S, XS, L, M
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
Size: XL
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width
|
| Grips |
Size: XS,S,M,L,XL Trek Line Ergonomic Comp - Lock-On |
| Stem |
Size: XS, S, M Bontrager Alloy, 25.4mm Clamp, 10-degree, 90mm Length
Size: L,XL Bontrager Alloy, 25.4mm Clamp, 10-degree, 110mm Length
|
| Brake |
Size: S, XL, XS, L, M
Tektro MD-U310 mechanical disc
|
| Brake Rotor |
Size: S, XL, XS, L, M
Tektro wave, 6-bolt, 160 mm
|
| Weight | |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
Trek FX 1 Disc Sizing
How tall are you?
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inside leg?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
| Size | Rider Height | Inseam |
| XS | 147 - 155 cm | 69 - 73 cm |
| S | 155 - 165 cm | 72 - 78 cm |
| M | 165 - 175 cm | 77 - 83 cm |
| L | 175 - 186 cm | 82 - 88 cm |
| XL | 186 - 197 cm | 87 - 93 cm |
Geometry
Trek FX 1 Disc Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Letter | XS | S | M | L | XL |
| Wheel Size | 700c | 700c | 700c | 700c | 700c |
| A - Seat Tube | 33.0 | 37.5 | 42.0 | 46.5 | 52.0 |
| B - Seat Tube Angle | 75° | 74.5° | 74° | 73.5° | 72.5° |
| C - Head Tube Length | 11.5 | 14.0 | 16.5 | 19.0 | 21.5 |
| D - Head Angle | 70.0° | 70.5° | 71.0° | 71.5° | 72.5° |
| E - Effective Top Tube | 52.8 | 54.3 | 56.3 | 58.3 | 61.3 |
| F - Bottom Bracket Height | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| G - Bottom Bracket Drop | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| H - Chainstay Length | 44.7 | 44.7 | 44.7 | 44.7 | 44.7 |
| I - Offset | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| J - Trail | 7.4 | 7.1 |
6.8 |
6.4 | 5.8 |
| K - Wheelbase | 105.2 | 105.9 | 107.0 | 108.0 | 108.7 |
| L - Standover | 67.5 | 71.5 | 75.4 | 79.1 | 83.6 |
| M - Frame Reach | 38.3 | 38.5 | 39.3 | 39.9 | 40.9 |
| N - Frame Stack | 54.3 | 56.8 | 59.4 | 62.0 | 64.8 |
