Description

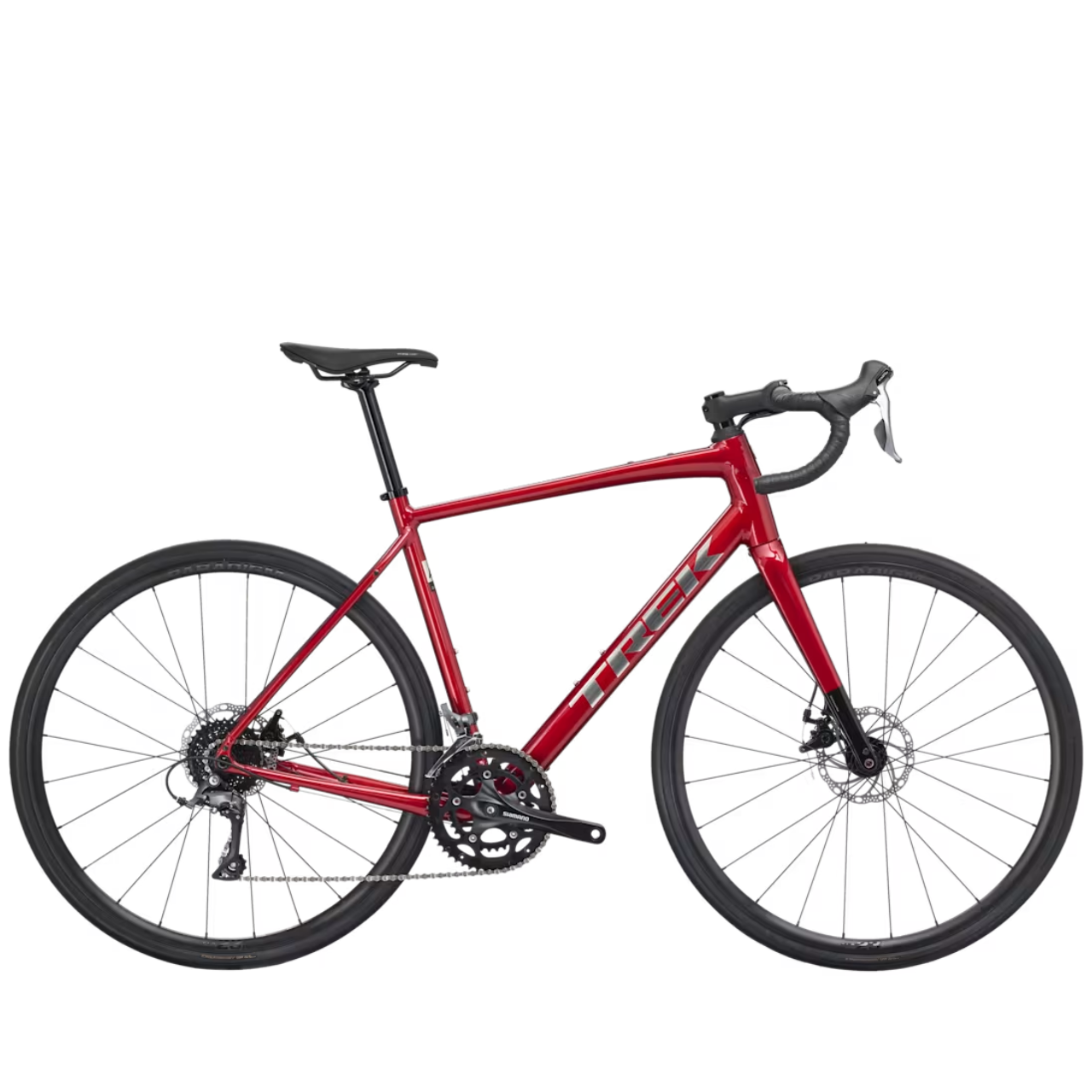

Trek Domane AL 2 Gen 4 Road Bike - Fury Red
The Trek Domane AL 2 Gen 4 is a comfortable, versatile, and confidence-inspiring road bike built for riders discovering the joy of road cycling. Featuring a lightweight Alpha Aluminium frame, endurance-focused geometry, generous tyre clearance, and a reliable Shimano drivetrain, it delivers a smooth, stable ride whether you're commuting, training, or taking on your first long-distance adventures.
Key Features
- Lightweight 100 Series Alpha Aluminium frame
- Domane carbon fork for improved comfort and precise handling
- Shimano Claris 2x8-speed drivetrain
- Mechanical disc brakes
- Tubeless Ready Bontrager Paradigm wheels
- Bontrager Girona Pro 700 x 32c tyres
- Endurance geometry for all-day comfort
- Internal cable routing and integrated frame mounts
Lightweight Aluminium Frame
The 100 Series Alpha Aluminium frame provides an excellent balance of strength, durability, and low weight. Designed with Trek's endurance-focused geometry, it delivers a stable, comfortable ride that inspires confidence on everything from short commutes to long weekend rides.
Carbon Fork Comfort
A lightweight Domane carbon fork helps reduce road vibration while improving steering precision and front-end comfort. The result is a smoother, more controlled ride over rough roads and uneven pavement.
Reliable Shimano Claris Drivetrain
The Shimano Claris 2x8-speed drivetrain offers dependable shifting with a wide range of gears for climbing hills, cruising on the flats, and tackling varied terrain. Its straightforward operation makes it an excellent choice for newer riders and everyday cycling.
Confident Disc Braking
Mechanical disc brakes provide consistent braking performance in both wet and dry conditions. With reliable stopping power and predictable control, they help riders feel confident in changing weather and on fast descents.
Ready for More Than Just the Road
The Domane AL 2 Gen 4 is built with generous tyre clearance, allowing riders to fit wider tyres for additional comfort and grip on rough roads, bike paths, and light gravel. Tubeless Ready Bontrager Paradigm wheels further enhance ride quality while helping reduce the risk of punctures.
Versatile Everyday Performance
Integrated mounts for mudguards, racks, and other accessories make the Domane AL 2 Gen 4 equally suited to commuting, fitness riding, and weekend adventures. Internal cable routing gives the bike a clean appearance while protecting cables from the elements.
Your Gateway to Road Cycling
Whether you're purchasing your first road bike, building fitness, or exploring new routes, the Trek Domane AL 2 Gen 4 delivers comfort, versatility, and dependable performance to help you enjoy every kilometre with confidence.
Specification
| Frameset | |
| Frame |
100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |
| Fork |
Domane AL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Weight | |
| Weight |
56 - 10.35 kg / 22.82 lbs |
| Weight Limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Drivetrain | |
| Shifter |
Size: 44, 49, 52, 54, 56, 58, 61 Shimano Claris ST-R2000-L, 8 speed, left
Size: 44, 49, 52, 54, 56, 58, 61
Shimano Claris ST-R2000-R, 8 speed, right
|
| Front Derailleur | Shimano Claris R2000, 31.8 mm clamp |
| Rear Derailleur |
Shimano Claris R2000, medium cage, 34T max cog |
| Crank |
Size: 44, 49, 52, 54, 56 Shimano RS200, 50/34 (compact), 165 mm length
Size: 58, 61
Shimano RS200, 50/34 (compact), 175 mm length
|
| Bottom Bracket | Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle |
| Cassette |
Shimano HG31, 11-32, 8-speed |
| Chain |
Shimano Sora HG71, 8 speed |
| Max. Chainring Size |
1x: 50T, 2x: 50/34 |
| Wheels | |
| Hub Front |
Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle |
| Hub Rear |
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewer Rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Tyre |
Bontrager Kwaremont Comp, Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Components | |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost |
Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
|
| Handlebar |
Size: 44 Size: 49, 52 Size: 54, 56, 58 |
| Handlebar Tape |
Trek gel cork |
| Stem |
Size: 44
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length
Size: 61
Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
|
| Brake |
Tektro C550 mechanical disc brake, dual piston, flat mount |
| Brake Rotor | Tektro wave, 6-bolt, 160 mm |
| Rotor Size | Max brake rotor sizes: 160mm front & rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Sizing
How tall are you?
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
What is your inside leg?
How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
| Size | Rider Height | Inseam |
| 44 |
150 - 153 cm 4'11" - 5'0" |
71 - 73 cm 28" - 29" |
| 49 |
156 - 163 cm 5'1" - 5'4" |
74 - 77 cm 29" - 30" |
| 52 |
163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
| 54 |
168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
| 56 |
174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
| 58 |
180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
| 61 |
185 - 191 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
