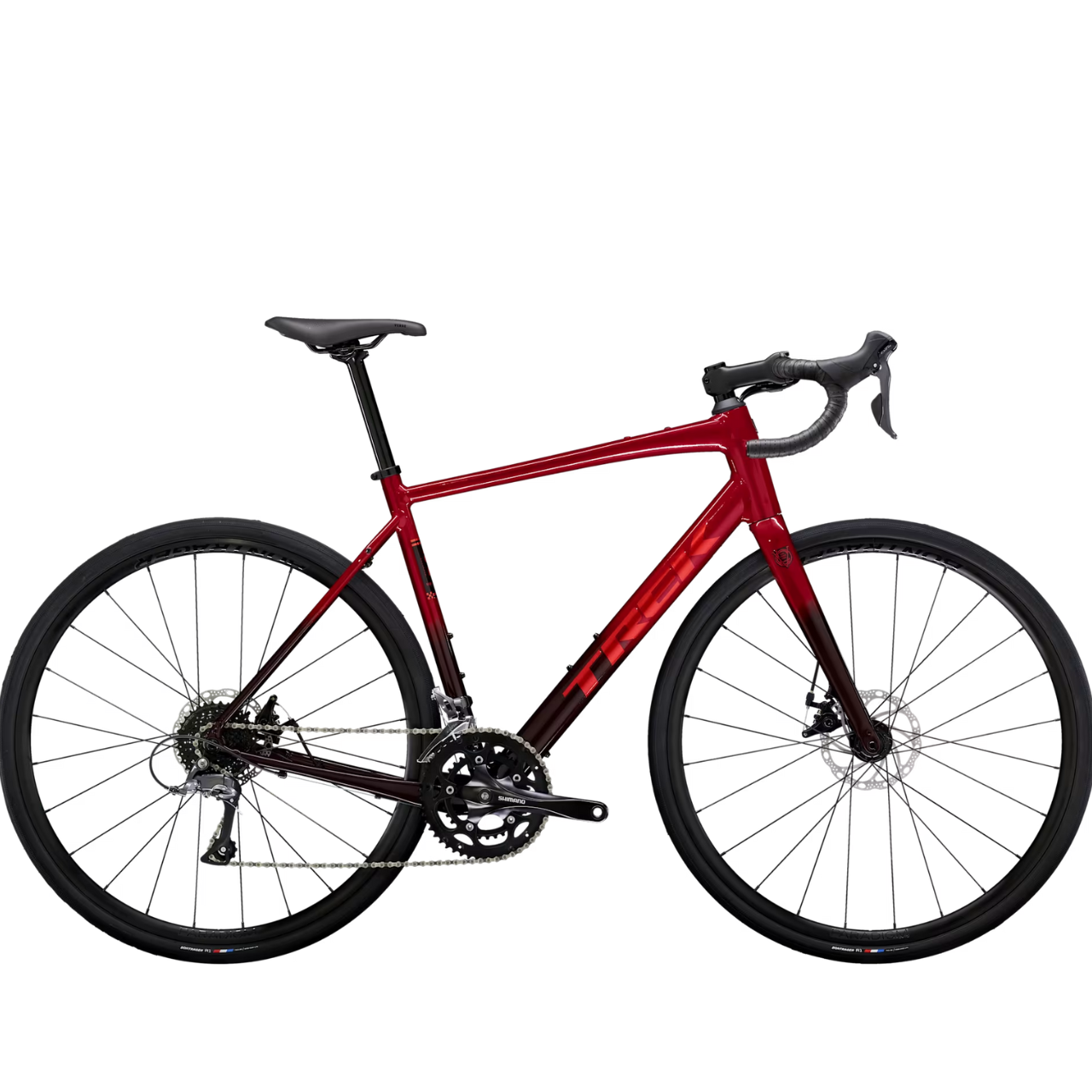

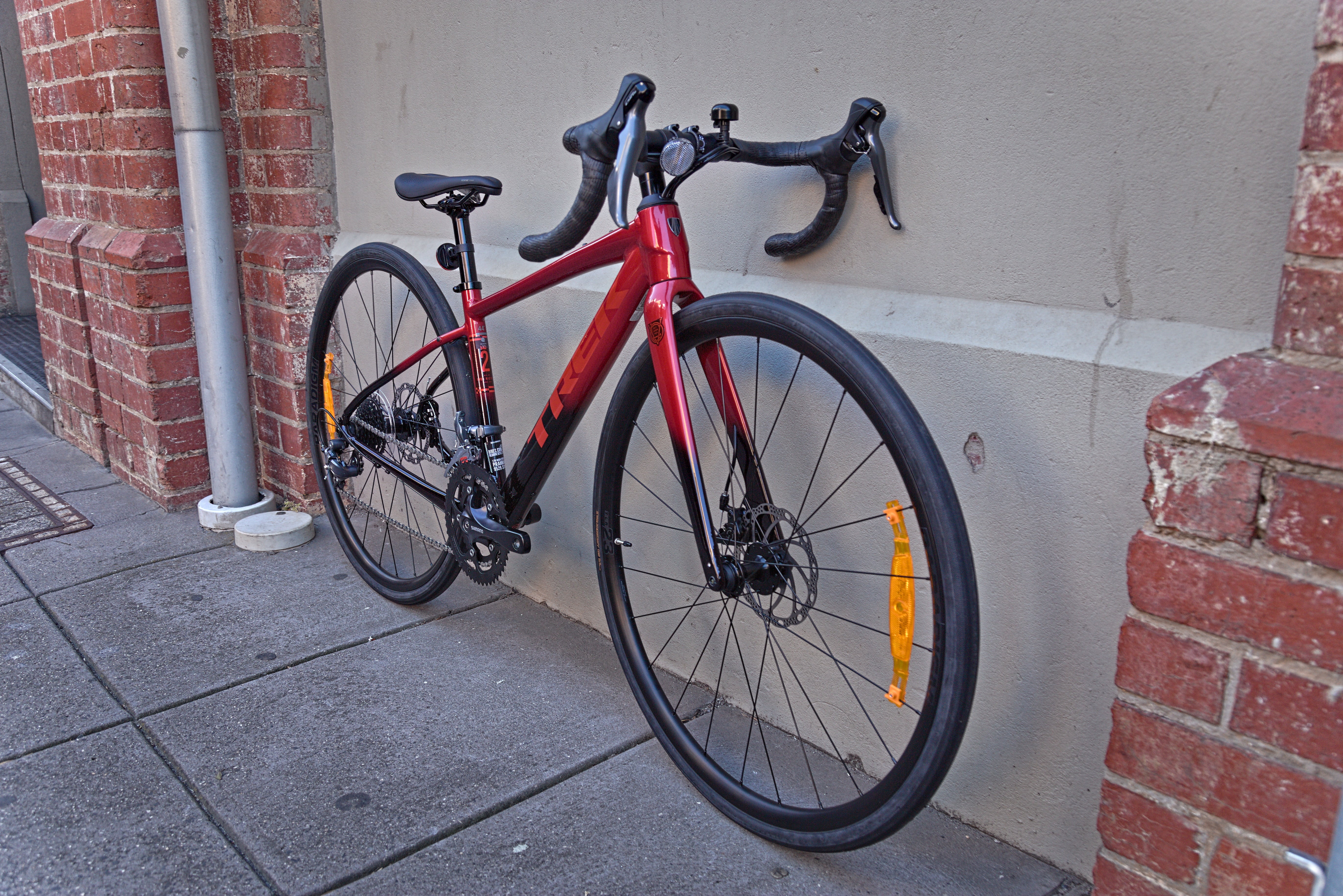

Trek Domane AL 2 Gen 4 Road Bike - Crimson/Dark Carmine Fade

$1,499.00
Minus Plus
Click&Collect
No Delivery Available
$ request a price match
Description

Trek Domane AL 2 Gen 4 Road Bike – Crimson / Dark Carmine Fade

The Trek Domane AL 2 Gen 4 is the perfect entry point into the world of road cycling — fast, comfortable and incredibly versatile. Whether you’re joining weekend bunch rides, commuting through the city, or exploring smooth gravel paths, this bike is built to make every ride feel smooth and confidence-inspiring.

At the heart of the Domane AL 2 is Trek’s lightweight 100 Series Alpha Aluminium frame, paired with a carbon fork that absorbs road vibration and keeps handling precise. The geometry is designed for all-day comfort, giving new and returning riders a more relaxed position without sacrificing speed. It’s a bike that feels quick when you push it, but forgiving when you’re just cruising.

The Shimano Claris 8-speed drivetrain offers reliable, easy-to-use shifting and a wide gear range that handles rolling hills and flat sprints with ease. Mechanical disc brakes provide dependable stopping power in all weather conditions — ideal for year-round riding and urban commuting.

One of the Domane AL 2’s biggest strengths is its versatility. With clearance for wider tyres, plus rack, mudguard and top-tube mounts, you can easily set it up for commuting, fitness rides, or light gravel adventures. Out of the box, the Bontrager 32mm tyres strike a great balance between speed and comfort, smoothing out rough roads and bike paths.

Finished in a striking Crimson / Dark Carmine Fade, this Domane stands out visually while delivering the performance and durability Trek is known for. It’s a bike designed to grow with you — from your first serious road ride to long weekend kilometres and beyond.

Key Features

  • Lightweight Alpha Aluminium frame with comfortable endurance geometry

  • Carbon fork for improved vibration dampening and responsive steering

  • Shimano Claris 2x8 drivetrain for smooth, reliable shifting

  • Mechanical disc brakes for consistent stopping power in all conditions

  • 32mm tyre clearance for added comfort and light gravel capability

  • Rack and mudguard mounts for commuting or touring setups

  • Tubeless-ready Bontrager wheels

  • Eye-catching Crimson / Dark Carmine Fade colourway



Specification

Frameset
Frame 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle
Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Weight
Weight 56 - 10.55 kg / 23.26 lb
Weight Limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Drivetrain
Shifter Size: 44, 49, 52, 54, 56, 58, 61

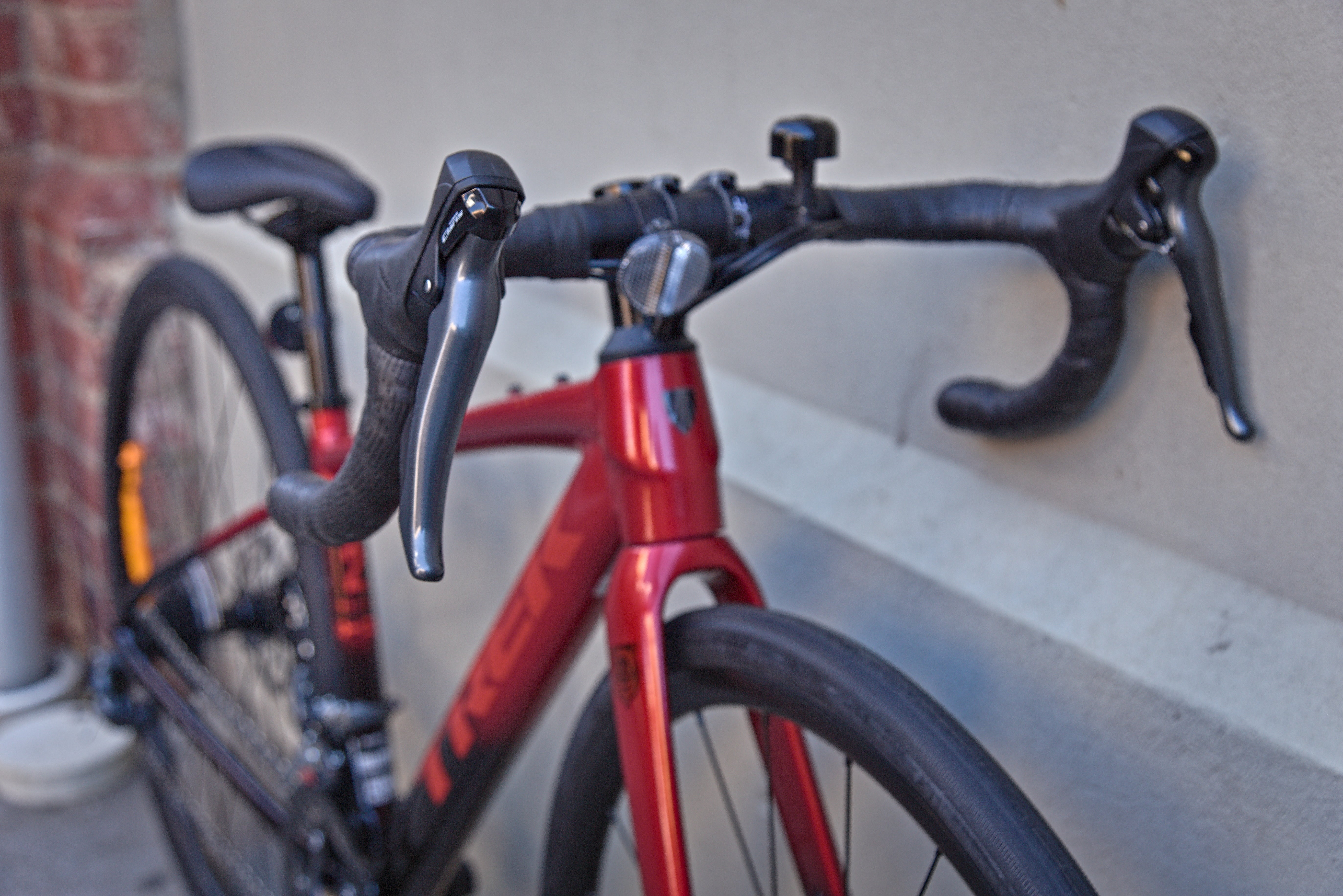

Shimano Claris ST-R2000-L, 8 speed, left
Size: 44, 49, 52, 54, 56, 58, 61
Shimano Claris ST-R2000-R, 8 speed, right
Front Derailleur Shimano Claris R2000, 31.8 mm clamp

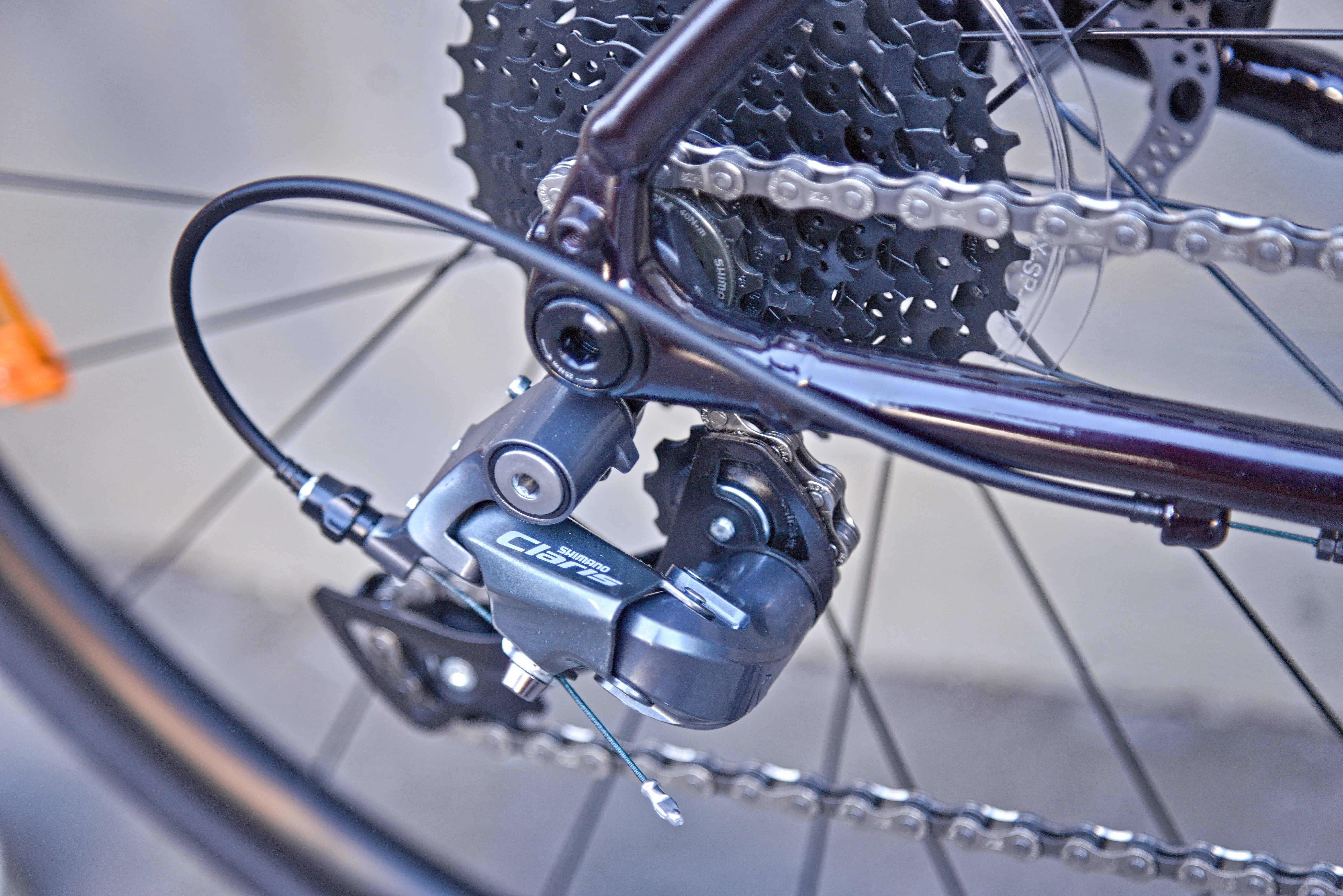

Rear Derailleur Shimano Claris R2000, medium cage, 34T max cog
Crank Size: 44
Shimano RS200, 50/34 (compact), 165 mm length
Size: 49, 52, 54
Shimano RS200, 50/34 (compact), 170 mm length
Size: 56, 58, 61
Shimano RS200, 50/34 (compact), 175 mm length
Bottom Bracket Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle
Cassette Shimano HG31, 11-32, 8-speed
Chain Shimano Sora HG71, 8 speed
Max. Chainring Size 1x: 50T, 2x: 50/34
Wheels
Hub - Front Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Skewer - Front Bontrager Switch chamfered thru axle
Hub - Rear Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer - Rear Bontrager Switch chamfered thru axle, removable lever
Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes 14 g stainless steel, black
Tyre Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Components
Saddle Verse Short, steel rails, 145 mm width
Seatpost Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
Handlebar Size: 44
Bontrager Comp, Alloy, 31.8 mm, 80mm Reach, 121mm drop, 36cm control width, 40cm drop width
Size: 49
Bontrager Comp, Alloy, 31.8 mm, 80mm Reach, 121mm drop, 38cm control width, 42cm drop width
Size: 52
Bontrager Comp, Alloy, 31.8 mm, 80mm Reach, 121mm drop, 40cm control width, 44cm drop width
Size: 54 & 56
Bontrager Comp, Alloy, 31.8 mm, 80mm Reach, 121mm drop, 42cm control width, 46cm drop width
Size: 58 & 61
Bontrager Comp, Alloy, 31.8 mm, 80mm Reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar Tape Bontrager Supertack Perf tape
Stem Size: 44
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake System
Brake Tektro C550 mechanical disc brake, dual piston, flat mount
Brake Rotor Tektro wave, 6-bolt, 160 mm
Rotor Size Max brake rotor sizes: 160 mm front and rear

Trek reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Size Guide

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

 Size Rider Height Inseam
44 150-153cm 71-73cm
49 156-163cm 74-77cm
52 163-168cm 76-79cm
54 168-174cm 78-82cm
56 174-180cm 81-85cm
58 180-185cm 84-87cm
61 185-191cm 86-90cm


Geometry

Geometry diagram labelling frame measurements A to N. Each label corresponds to a row in the geometry table below.

All measurements provided in cm unless otherwise stated.

Frame size number 44 49 52 54 56 58 61
Wheel size 700c 700c 700c 700c 700c 700c 700c
A — Seat tube 39.0 44.0 47.5 50.0 52.5 54.8 57.6
B — Seat tube angle 74.6° 74.6° 74.2° 73.7° 73.7° 73.0° 72.7°
C — Head tube length 9.5 12.3 14.5 16.0 17.5 19.5 23.5
D — Head angle 70.3° 70.8° 71.3° 71.3° 71.9° 72.0° 72.1°
E — Effective top tube 50.7 51.6 53.0 54.2 55.4 56.7 58.6
G — BB drop 8.0 8.0 8.0 8.0 7.8 7.8 7.5
H — Chainstay length 42.0 42.5 42.0 42.0 42.0 42.5 42.5
I — Offset 5.3 5.3 5.3 5.3 4.8 4.8 4.8
J — Trail 6.6 6.6 5.9 5.9 6.1 6.0 6.3
K — Wheelbase 98.3 100.1 100.3 101.0 101.8 102.2 103.865.7
L — Standover 65.7 71.7 73.5 75.4 77.6 79.6 84.2
M — Frame reach 36.0 36.8 37.1 37.4 37.7 38.0 38.5
N — Frame stack 51.0 54.0 56.1 57.5 59.1 61.1 64.6
