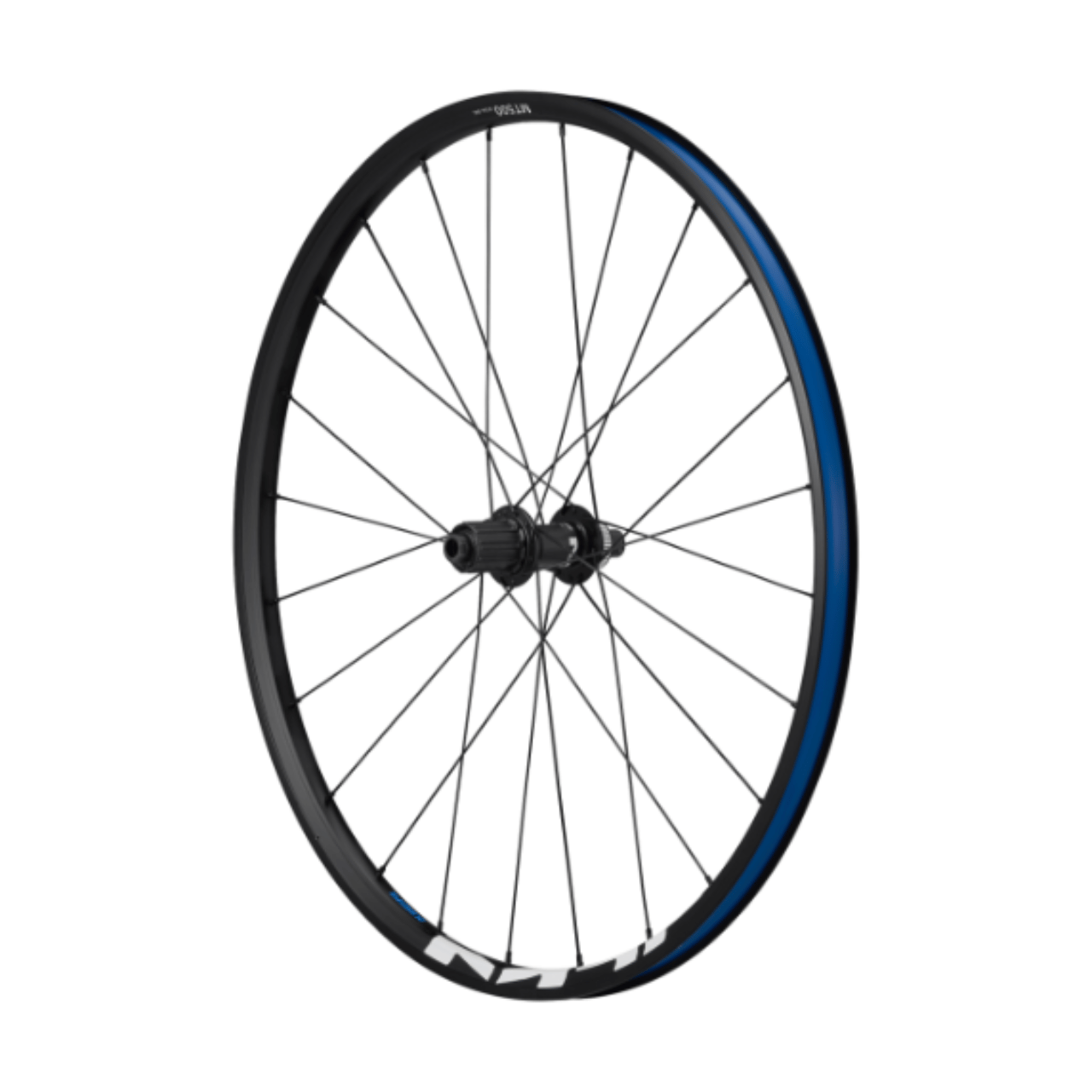

Shimano WH-MT500 27.5" Boost Rear MTB Wheel – Centre Lock | 148x12mm | 8-11 Speed

Shimano WH-MT500 27.5" Boost Rear MTB Wheel – Centre Lock | 148x12mm | 8-11 Speed

The Shimano WH-MT500 27.5" Rear Wheel is a dependable and durable mountain bike wheelset component, designed to handle everything from trail riding to everyday adventures. Built around a strong aluminium rim with a 24mm internal width, Boost 148x12mm axle compatibility and Shimano's renowned hub technology, it delivers reliable performance, smooth rolling efficiency and long-lasting durability.

Designed for modern mountain bikes running Centre Lock disc brakes, the WH-MT500 is an excellent replacement or upgrade for riders seeking a quality Shimano wheel built to withstand demanding riding conditions.

Key Features

• Shimano WH-MT500 rear MTB wheel
• 27.5" (650B) wheel size
• Boost 148x12mm thru-axle compatibility
• Centre Lock disc brake compatible
• Compatible with Shimano HG 8, 9, 10 and 11-speed drivetrains
• Strong aluminium rim construction
• 24mm internal rim width
• Optimised for 2.0"–2.4" MTB tyres
• 24 butted stainless steel spokes
• Sealed hub bearings with internal grease sleeve
• Durable and reliable Shimano hub design
• Approximate weight: 1130g

Built for Modern Trail Riding

The Shimano WH-MT500 is engineered to deliver dependable performance across a wide variety of mountain bike terrain.

Its Boost hub spacing increases wheel stiffness for improved handling and control, while the durable aluminium construction stands up to demanding trail riding and everyday use.

Whether you're replacing a damaged wheel or upgrading your current setup, the MT500 provides Shimano reliability you can trust.

Wide Aluminium Rim

The robust aluminium rim features a 24mm internal width, providing excellent support for modern mountain bike tyres.

Designed for tyres between 2.0" and 2.4" wide, the wider rim profile improves tyre stability, cornering confidence and overall ride quality on technical terrain.

Reliable Shimano Hub Technology

At the centre of the wheel is Shimano's proven rear hub, featuring:

• Contact seals to help keep dirt and water out
• Internal grease sleeve for improved lubrication retention
• Smooth rolling performance
• Low-maintenance design
• Long-lasting durability

These features help maximise bearing life while reducing servicing requirements, even in harsh riding conditions.

Centre Lock Disc Brake Compatibility

The WH-MT500 uses Shimano's Centre Lock rotor mounting system, allowing quick and secure brake rotor installation while maintaining reliable braking performance.

Please Note: Centre Lock brake rotors are sold separately unless otherwise stated.

Boost 148x12mm Compatibility

This rear wheel is designed specifically for 148x12mm Boost thru-axle frames, offering increased wheel stiffness and compatibility with modern trail and all-mountain bikes.

The hub is compatible with Shimano HG freehub standards, supporting 8, 9, 10 and 11-speed Shimano drivetrains.

Please check your bike's axle standard, rotor mounting system and freehub compatibility before purchasing.
