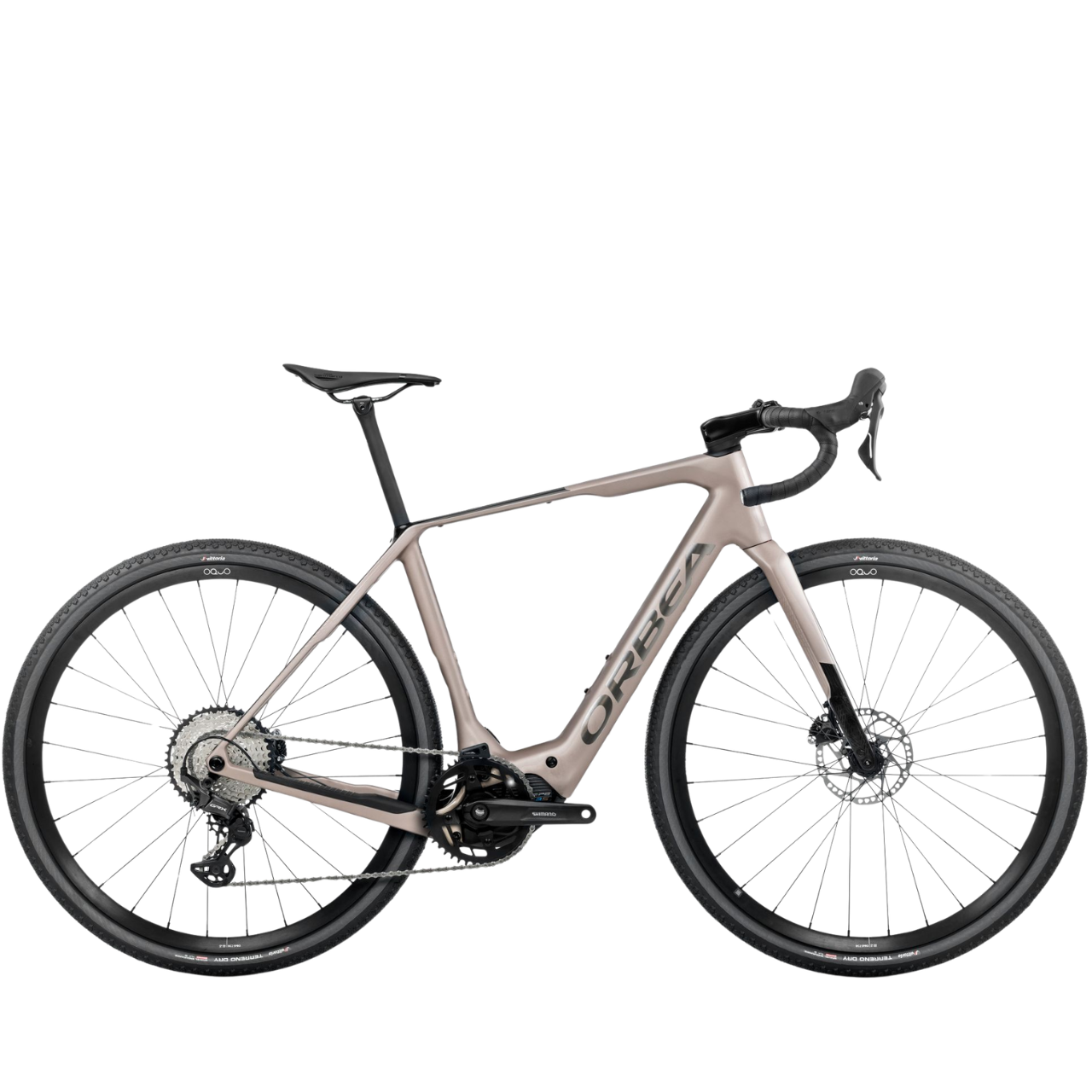

Orbea Denna M30 Electric Gravel Bike - Nickel Matt & Carbon Raw Gloss

$9,999.00
Click&Collect
Delivery Available
Description
Orbea Denna M30 Electric Gravel Bike - Nickel Matt & Carbon Raw Gloss

The Orbea Denna M30 Electric Gravel Bike is designed to remove limits and open the door to bigger adventures. Built for riders who want to explore further, climb higher and ride longer, the Denna blends the efficiency of a high performance gravel bike with smooth and natural electric assistance.

Key Features

Lightweight Orbea Denna frame with internal cable routing
Full carbon gravel fork for comfort and precision handling
Shimano EP801 electric motor with smooth gravel tuned assistance
Integrated 420Wh battery for long distance riding
Shimano GRX 12 speed drivetrain designed for gravel performance

At the heart of the bike is the Shimano EP801 motor, delivering powerful and responsive support exactly when you need it. Whether you are grinding up steep gravel climbs or tackling long backroad routes, the system provides consistent assistance while maintaining a natural pedalling feel. Paired with a sleek 420Wh internal battery, the Denna offers the range needed for big days in the saddle without compromising the clean look and handling of a modern gravel bike.

The Denna frame is engineered specifically for gravel riding, combining stability, comfort and versatility. Internal cable routing keeps everything clean and protected, while generous tyre clearance allows the use of wide tyres for improved grip and control on loose terrain. The full carbon fork further enhances ride quality by absorbing trail chatter and reducing fatigue over long distances.

A Shimano GRX drivetrain delivers reliable shifting and gravel focused gearing, with a wide range 12 speed cassette that makes climbing easier while still offering speed on open roads. Shimano hydraulic disc brakes provide confident braking performance in all conditions, giving you the control needed when descending rough tracks or navigating technical sections.

Rolling on Oquo Road Control wheels paired with Vittoria Terreno Dry gravel tyres, the Denna M30 is ready to handle everything from fast gravel roads to rugged mixed terrain. The carbon seatpost, ergonomic cockpit and comfortable gravel saddle complete a bike designed for long rides and all day exploration.

Finished in the striking Nickel Matt and Carbon Raw Gloss colourway, the Orbea Denna M30 combines modern design with serious adventure capability. It is the perfect choice for riders looking to push beyond the usual routes and discover what lies further down the gravel road.

Specification

Description
Frame Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.
Fork Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
Steerer Tube   FSA 1-1/2" Integrated Aluminium Cup
Drivetrain
Chainring Alloy EP8 44t
Crankset Shimano Steps EM600
Shifters Shimano GRX RX610
Cassette Shimano CS-M7100 10-45t 12-Speed
Rear Derailleur Shimano GRX RX822 GS
Front Derailleur N/A
Chain Shimano M6100
Chainguide Orbea eBike chainguide
Cockpit
Handlebar OC Gravel GR31, Reach 70, Drop 110
Stem OC Road Performance RP23, -5º
Brakes
Brakes Shimano RX400 Hydraulic disc
Wheels Oquo Road Control RC25PRO, Alloy
Wheels Oquo Road Control RC25PRO, Alloy
Tyres Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
Front Wheel Axle Orbea Thru Axle 12x100mm M12xP1 Hollow
Rear Wheel Axle Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
Components
Seatpost OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle Selle San Marco Shortfit 2.0 Start Up Off Road
Handlebar Tape Orbea Anti-Slippery/Shock Proof
Electric Bike
Battery Orbea Internal 420Wh
Range Extender N/A
Motor Shimano EP801
Display N/A
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote EN600-L

Size Guide



XS S M L XL XXL
1 Seat Tube (C-T) 405 438 471 504 537 570
2 Top Tube (EFF) 531 542 558 570 587 599
3 Head Tube 110 131 152 178 199 220
4 Chainstay 425 425 425 425 425 425
5 BB Drop 78 78 78 76 76 76
6 BB Height 284,5 284,5 284,5 286,5 286,5 286,5
7 Wheelbase 1030 1033 1040 1054 1061 1068
8 Head Angle 70 70.5 71 71 71.5 72
9 Seat Angle 74.5 74 73.5 73.5 73 73
10 Rake 55 55 55 55 55 55
11 Standover 738 765 792 819 846 873
12 Reach 390 390 395 400 405 410
13 Stack 526 548 570 592 614 636
14 Fork Length 390 390 390 390 390 390
15 Trail 73 70 67 67 63 60

What size do I need?

Wondering about the perfect bike size for you? We get it—finding the right fit can be tricky, especially with high-performance bikes. While it's tough to give precise advice without seeing you in person, our expert retailers are here to help. Whether you're looking for comfort, performance, or a bit of both, they'll guide you to the right size based on your goals and riding style. Don't leave it to guesswork—start a conversation with your local retailer today and make sure your new bike is just right for you.

Size Height
XS 155-166cm
S 167-172cm
M 173-179cm
L 180-185cm
XL 186-191cm
XXL 192-207cm
