Kalkhoff Image L Excite Belt Electric Bike - Wave Frame - Diamond Black
Description

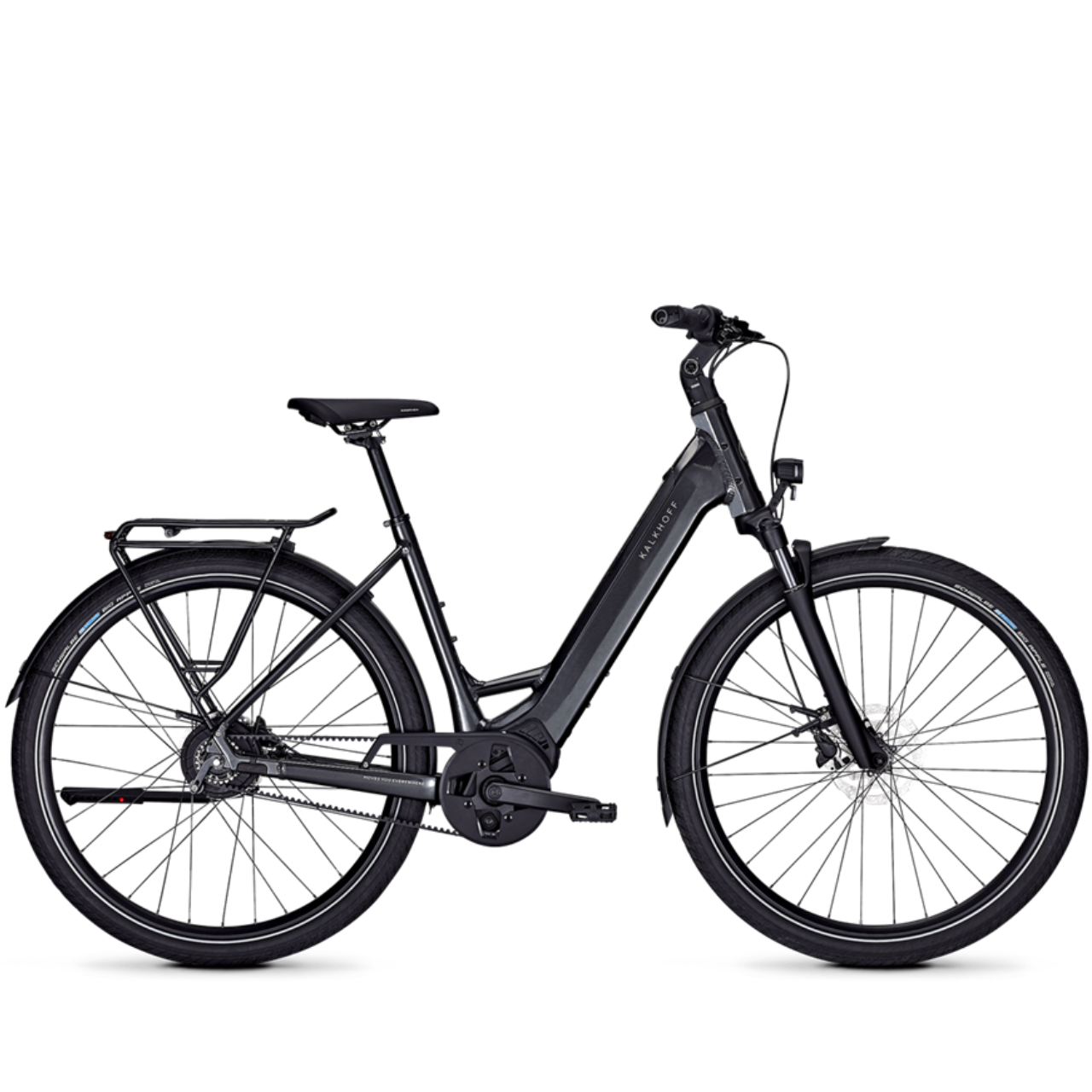

Kalkhoff Image L Excite Belt Electric Bike - Wave Frame - Diamond Black
A premium, lightweight step-through eBike built for effortless city living.
The Kalkhoff K26 Image L Excite Wave in Diamondblack is designed for riders who want comfort, reliability and refined performance in one beautifully integrated package. Whether you’re commuting through Melbourne traffic, cruising along bike paths, or running daily errands, this low-step urban eBike makes every ride smooth, quiet and stress-free.
Smooth, Silent Power – Bosch Performance Line SX
At the heart of this bike is the Bosch Performance Line SX Smart System motor, delivering a responsive 60Nm of torque that feels natural and intuitive. It provides just the right boost when you need it, accelerating from traffic lights, climbing overpasses or tackling headwinds.
The removable 400Wh Bosch CompactTube battery offers up to 95km of assisted range, ideal for daily commuting and weekend cruising. Need to go further? It’s compatible with the Bosch PowerMore 250 range extender for added distance flexibility.
With the Bosch Purion 200 colour display, all your ride data is clear and easy to access at a glance.
Clean, Low-Maintenance Belt Drive
Say goodbye to greasy chains.
The Gates Carbon Drive belt system paired with the Enviolo Urban hub gearing delivers whisper-quiet performance and ultra-low maintenance. With a wide 380% gear range, you can seamlessly adjust your gearing; even while stationary making stop-start city riding effortless.
This setup is perfect for riders who want reliability without constant servicing.
Built for Comfort & Confidence
Rolling on large 29” wheels with Schwalbe Big Apple tyres, the ride feels stable, plush and puncture-resistant. The SR Suntour NCX32-E air suspension fork smooths out rough roads and tram tracks, while hydraulic disc brakes with 160mm rotors provide confident stopping power in all conditions.
The upright comfort riser handlebar, ergonomic Ergon grips, plush Selle Royal saddle and adjustable stem allow you to fine-tune your riding position for all-day comfort.
Specification
| E-Bike | |
| Battery | Bosch CompactTube Li-Ion (400Wh) |
| Battery Ampere Hours | 11.1 Ah |
| Battery Watt-Hours | 400 Wh |
| Motor | Bosch Performance Line SX Smart System, 36 V / 250 W |
| Motor Torque (Nm) | 60Nm |
| Display | Bosch Purion 200 Colour Display with Walk Assist |
| Drivetrain | |
| Sprocket Cassette | Gates Carbondrive CDC |
| Chain |
Gates Carbondrive CDC |
| Gear | Enviolo Urban |
| Crankset | Aluminium |
| Wheelset | |
| Wheelsize | 29" |
| Tyres | Schwalbe Big Apple Perf. Line - 55mm |
| Rims | DT Swiss X432 - Aluminium - Black |
| Brakes | |
| Brake Type | Hydraulic |
| Front Disc | 160mm |
| Rear Disc | 180mm |
| Components | |
| Handlebars | Comfort Riser |
| Stem | Aluminium Adjustable |
| Saddle | Selle Royal Essenza |
| Seat Post | Aluminium Rigid |
| Fork | SR Suntour NCX32-Air - Lockout |
| Accessories | |
| Pannier Rack | MIK HD Rear Carrier - Max Load 27kg |
| Stand | Rear Stand, Adjustable |
| Headlight | Herrmans MR5 - LED |
| Rear Light | Trelock COB Line with Brake Light |
| Mudguards | Plastic with edge protector |
| Pedals | Comfort Pedals |
| Weight | 23Kg |
* Subject to technical modification without notice. Errors and omissions excepted.
Geometry
| Size | Small | Medium | Large | X-Large |
| Size in mm | 450 | 500 | 550 | 600 |
| Top Tube Length | 595.6 | 604.5 | 614.5 | 624.5 |
| Steering Tube | 70 | 70 | 70 | 70 |
| Seat Angle | 72.5 | 72.5 | 72.5 | 72.5 |
| Bottom Bracket Drop | 68 | 68 | 68 | 68 |
| Head Tube Length | 180 | 190 | 200 | 210 |
| Fork Length | 439 | 439 | 439 | 439 |
| Fork Travel | 46 | 46 | 46 | 46 |
| Wheelbase | 1110 | 1121 | 1131 | 1141 |
| Stack in mm | 636 | 646 | 655 | 664 |
| Reach in mm | 391 | 398 | 405 | 412 |
