Description

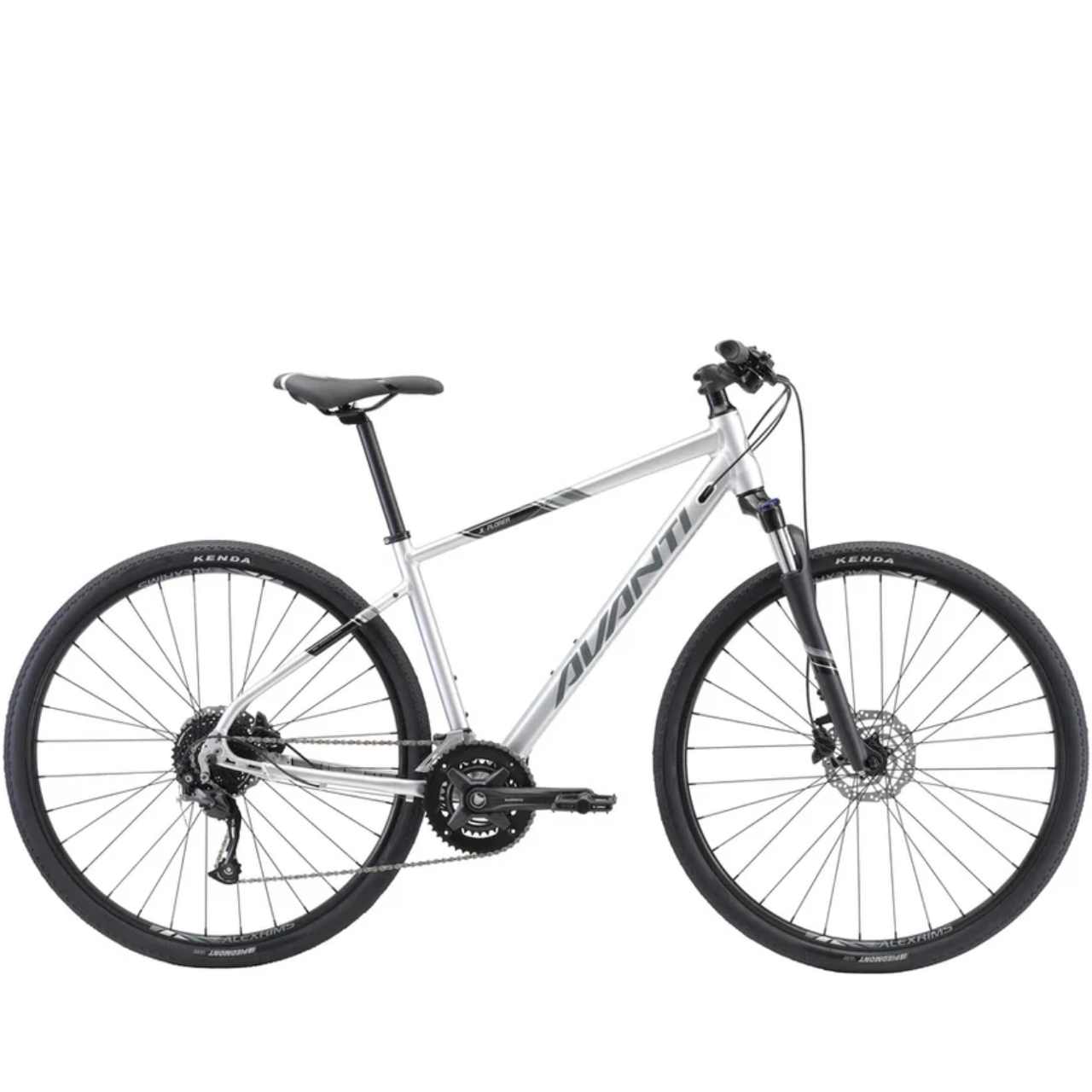

Avanti X-Plorer 2 Hybrid Bike - Silver
The Avanti X-Plorer 2 is the perfect hybrid bike for riders who want the speed of a road bike, the comfort of a commuter, and the versatility to explore beyond the pavement. Featuring a lightweight alloy frame, suspension fork, Shimano 18-speed drivetrain, and powerful hydraulic disc brakes, the X-Plorer 2 is equally at home on urban bike paths, fitness rides, and weekend rail trail adventures.
Key Features
- Lightweight ADT 6061 butted alloy frame
- Internal cable routing for a clean finish
- SR Suntour suspension fork with hydraulic lockout
- Shimano 2x9-speed drivetrain
- Shimano hydraulic disc brakes
- Fast-rolling 700x40c tyres
- Rack and mudguard compatible frame
- Comfortable upright riding position
- Double-wall alloy wheels
Lightweight and Comfortable Design
The ultra-light Formtech alloy frame provides an efficient and responsive ride while maintaining a comfortable upright riding position. Whether you're commuting, exercising, or exploring new trails, the X-Plorer 2 delivers all-day comfort and confidence.
Suspension When You Need It
The SR Suntour NEX suspension fork features 63mm of travel to smooth out rough bike paths, gravel sections, and uneven roads. When efficiency is the priority, the hydraulic lockout allows you to firm up the fork for improved pedalling performance.
Reliable Shimano Performance
A Shimano 2x9-speed drivetrain combines Acera and Altus components to provide smooth, dependable shifting across a wide range of terrain. The 46/30T crankset and 11-36T cassette offer gearing suitable for both steep climbs and fast cruising.
Confident Braking in All Conditions
Shimano MT200 hydraulic disc brakes deliver powerful, consistent stopping performance regardless of weather conditions or surface type, providing confidence and control wherever your ride takes you.
Ready for Mixed Terrain
The Kenda Piedmont 700x40c tyres strike the ideal balance between speed, grip, and comfort. Their wider profile and puncture-resistant K-Shield protection make them perfect for bike paths, gravel rail trails, and everyday riding.
Practical Everyday Versatility
With integrated mounts for racks and mudguards, the X-Plorer 2 can easily be adapted for commuting, touring, fitness riding, or recreational adventures.
Your Go-Anywhere Hybrid Bike
Combining comfort, efficiency, and dependable Shimano performance, the Avanti X-Plorer 2 is the ideal choice for riders seeking a versatile hybrid bike that can handle everything from weekday commutes to weekend explorations.
Specification
| Frameset | |
| Frame | ADT 6061 Butted Formtech Ultralight alloy, disc brake, internal cable routing, rack/fender compatible |
| Fork | SR Suntour NEX HLO DS, 63mm travel, hydraulic lockout |
| Drivetrain | |
| Bottom Bracket | Included with crankset |
| Cassette | Shimano HG200, 11–36T, 9-speed |
| Chain | KMC X9 |
| Crankset | Shimano MT210, 2-piece, 46/30T |
| Front Derailleur | Shimano Acera T3000-2 |
| Rear Derailleur | Shimano Altus, 9-speed, Shadow |
| Rear Gear | 9-speed |
| Shifters | Shimano Altus, 18-speed |
| Brake System | |
| Brakes | Shimano |
| Brake Levers | Shimano MT200 hydraulic disc |
| Wheelset | |
| Front Hub | Shimano RM35 Centrelock, 32H |
| Rear Hub | Shimano RM35 Centrelock cassette, 32H |
| Rims | Alex TD26 double-wall alloy, 32H |
| Spokes | Stainless steel |
| Tyres | Kenda Piedmont, 700 x 40c, K-Shield, AV valve |
| Components | |
| Grips | Zero Strike dual compound |
| Handlebar | Alloy, 31.8mm, 9° backsweep, 12mm rise |
| Headset | Integrated Aheadset, 1-1/8" |
| Pedals | Nylon platform with ball bearings |
| Saddle | Zero Zealth Sport |
| Seatpost | Alloy micro adjust, 27.2mm |
| Stem | Zero alloy ahead, 31.8mm, 6° |
Size Guide
GEOMETRY
| XS | S |
M | L | XL | ||
| 1 | Seat Tube Length (C-Top) | 365 |
410 |
450 |
495 | 545 |
| 2 | Horizontal Top Tube Length |
540 |
575 |
595 |
610 | 620 |
| 3 | Standover Height |
727 |
753 |
782 |
815 | 847 |
| 4 |
Head Tube Length |
110 |
115 |
130 |
145 | 160 |
| 5 | Head Angle |
70.5 |
70.5 | 70.5 | 70.5 | 70.5 |
| 6 | Seat Angle | 74.0 |
73.5 |
73.0 |
73.0 | 73.0 |
| 7 | BB Drop |
70 |
65 | 65 |
65 | 65 |
| 8 | Chainstay Length |
440 |
440 |
440 |
440 | 440 |
| 9 | Wheelbase | 1032 |
1064 |
1079 |
1094 | 1104 |
| 10 | Reach | 363 | 393 | 402 | 414 | 420 |
| 11 | Stack | 610 | 610 | 625 | 639 | 653 |
