Description

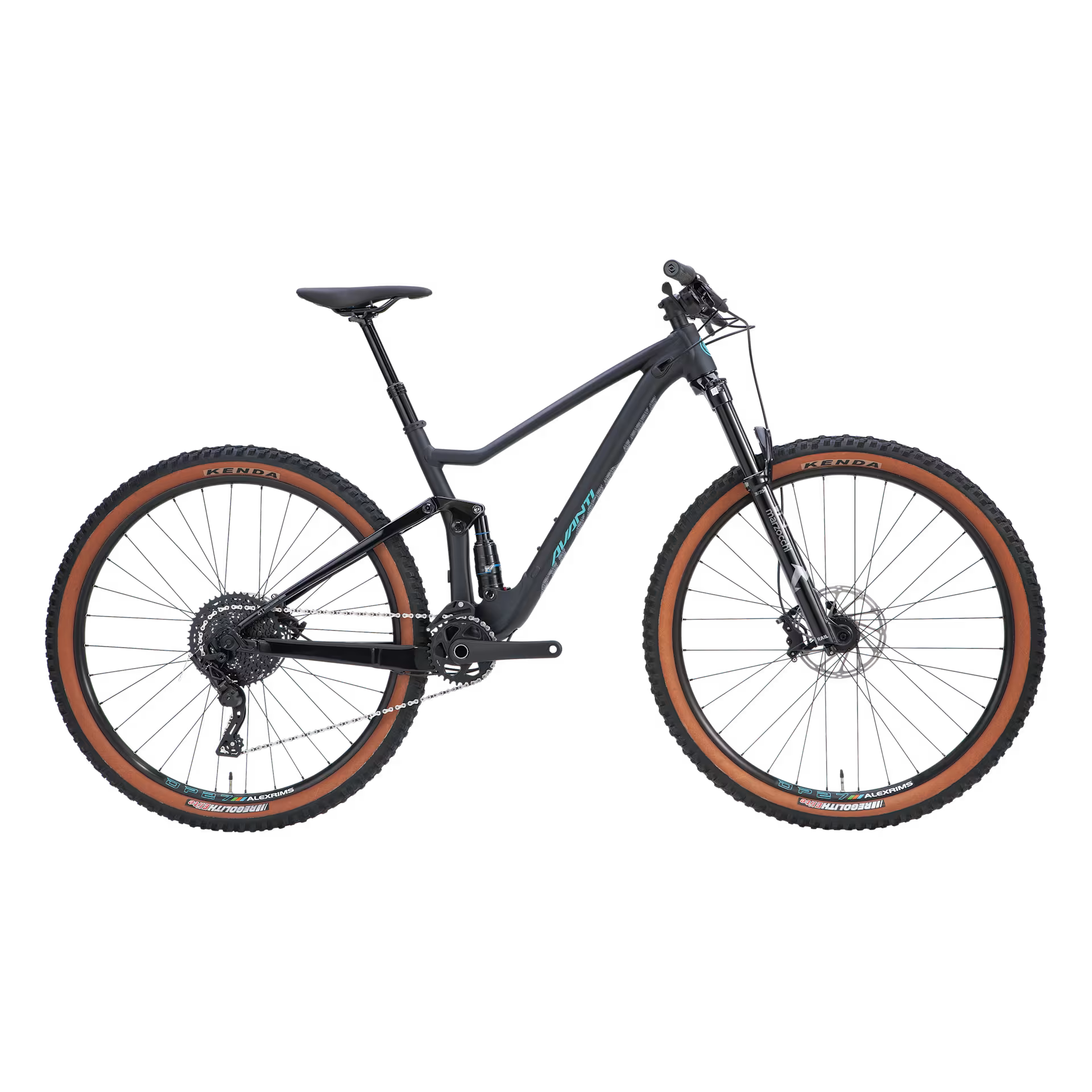

Avanti Hammer S Dual Suspension - Steel Blue
Take on the Trails with the Avanti Hammer S – Steel Blue
The Avanti Hammer S is a lightweight, full-suspension trail bike designed for riders who want confidence, control and versatility on challenging terrain. Featuring a lightweight 6061 SL alloy frame with progressive trail geometry, 120mm of rear travel and a 130mm Marzocchi Z2 Bomber fork, the Hammer S is built to tackle everything from flowing singletrack to technical trail sections.
Key Features at a Glance
- Frame: Lightweight 6061 SL Alloy, 120mm Travel, 29er, Down-Country Geometry
- Suspension: Marzocchi Z2 Bomber Air Fork, 130mm Travel + X-Fusion O2 Pro R Air Shock
- Drivetrain: Microshift XCD 11-Speed
- Brakes: SRAM DB8 4-Piston Hydraulic, 180mm Rotors
- Wheels: Alex DP-27 Tubeless Ready Alloy
- Tyres: Kenda Regolith 29 x 2.4"
- Seatpost: Syncros Duncan Dropper, Internally Routed
- Colour: Steel Blue
- Wheel Size: 29 Inches
Built for Modern Trail Riding
The Hammer S features a lightweight 6061 SL alloy frame with progressive geometry designed to provide a stable and confident ride. Its 120mm of rear travel delivers controlled suspension performance across varied trail conditions.
Marzocchi Suspension for Trail Control
The Marzocchi Z2 Bomber Air fork provides 130mm of front travel, while the X-Fusion O2 Pro R Air rear shock adds adjustable rebound control for a balanced and responsive suspension setup.
Smooth and Reliable 11-Speed Drivetrain
The Microshift XCD 11-speed drivetrain provides a wide range of gearing, helping you tackle steep climbs, fast descents and varied trail conditions with confidence.
Powerful 4-Piston Braking
SRAM DB8 4-piston hydraulic brakes with 180mm rotors deliver strong, controlled braking performance when riding steep and technical trails.
Tubeless-Ready Wheels and Dropper Post
The Hammer S comes equipped with Alex DP-27 tubeless-ready alloy rims, Kenda Regolith 29 x 2.4" tyres and a Syncros Duncan internally routed dropper post for added control and versatility on the trail.
Ready for Your Next Adventure
With its lightweight alloy frame, capable suspension, 11-speed drivetrain, powerful 4-piston brakes and 29-inch wheels, the Avanti Hammer S Steel Blue is a versatile full-suspension mountain bike built for riders who enjoy exploring demanding trails.
Specifications
| Specification | Description |
|---|---|
| Category | Mountain Bike |
| Family | Performance Mountain Bike |
| Model | Hammer S |
| Sizes | S, M, L, XL |
| Colour | Steel Blue |
| Frame | AL-6061 Ultralight Butted tubing, 120mm travel, cartridge bearing pivots, 1.5" tapered headtube, PF92 BB, 12 x 148mm |
| Fork | Marzocchi Z2 Bomber Air with RAIL damper, 15x110mm axle, 130mm travel |
| Rear Shock | X-Fusion O2 Pro R Air, rebound adjust |
| Rear Derailleur | Microshift XCD 11sp with Clutch |
| Shifters | Microshift XCD 11sp Trail Trigger with Sealed Bearing |
| Crankset | ProWheel MPX Boost, forged alloy, 32T Narrow/Wide |
| Cassette | Microshift 11-46T, 11-speed |
| Chain | KMC X11 |
| Brakes | SRAM DB8 4-Piston Hydraulic |
| Brake Rotors | 180mm, 6-Bolt |
| Wheel Size | 29" |
| Rims | Alex DP-27 Double-Wall Alloy, Tubeless Ready |
| Front Hub | Formula Boost Sealed Bearing, 110x15mm, 32H |
| Rear Hub | Formula Boost Sealed Bearing, 148x12mm, 32H |
| Spokes | Stainless Steel |
| Handlebar | Syncros Alloy 31.8mm, Low Rise, 9° Sweep |
| Stem | Syncros Alloy 31.8mm, 6° Rise |
| Headset | Integrated Threadless Syncros OE Pressfit/Tapered |
| Grips | Syncros Pro Lock-on |
| Tyres | Kenda Regolith, 29 x 2.4", Folding, 60TPI |
| Saddle | Syncros Belcarra 2.5 |
| Seat Post | Syncros Duncan Dropper 31.6mm, Internal Cable Routing |
| Bottom Bracket | Pressfit |
| Pedals | Not Included |
| Chain Guide | Yes |
Specifications are subject to change without notice.
