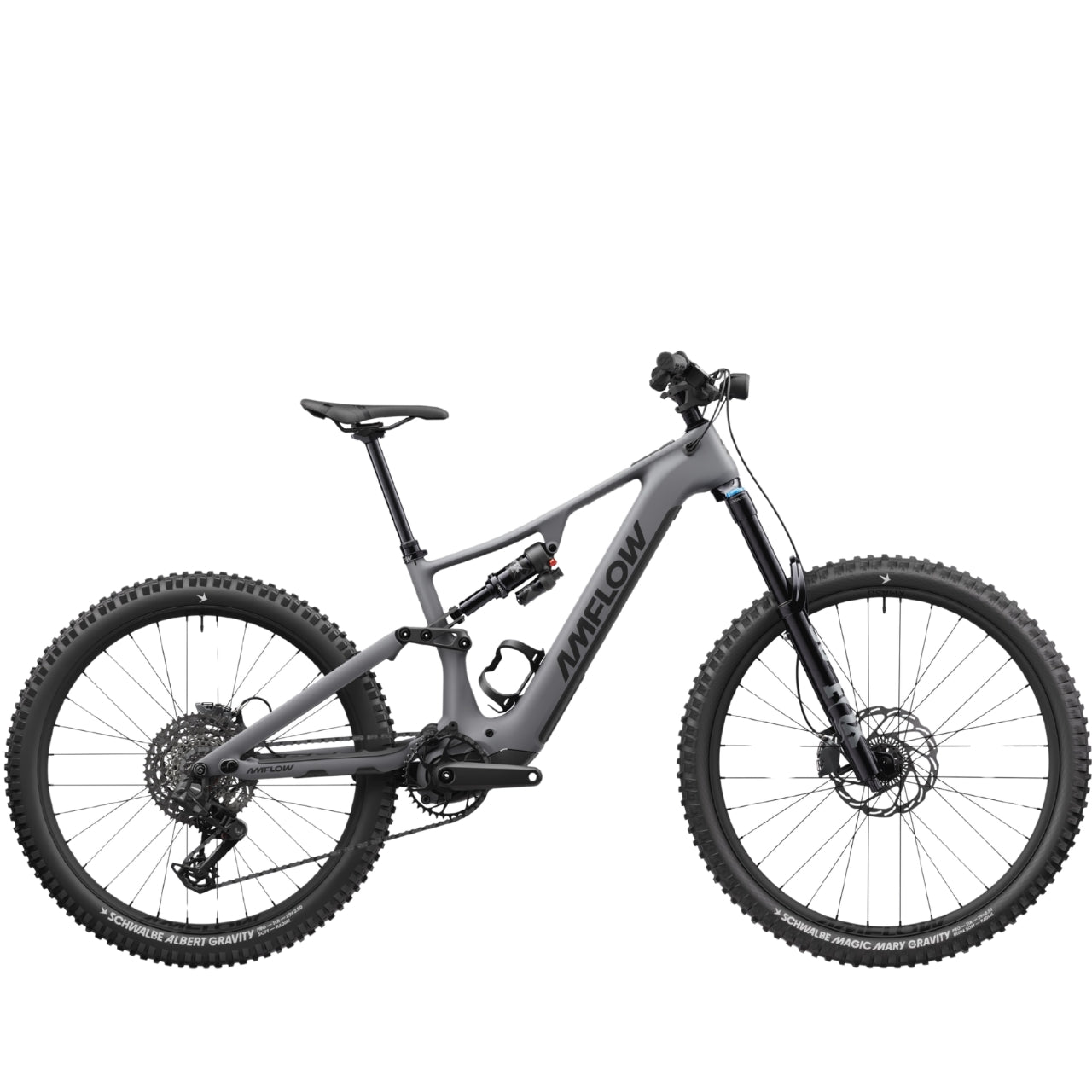

Amflow PR Carbon Pro Electric Mountain Bike – Avinox M2S Carbon eMTB | Basalt Grey

$8,699.00
Currently out of stock. Please call 03 9529 3752
$ request a price match
Description

The Ultimate Lightweight Carbon eMTB for Aggressive Trail Riding

The Amflow PR Carbon Pro is the flagship model in the PR range, combining cutting-edge eMTB technology with a lightweight carbon chassis to deliver exceptional performance on every trail. Designed for riders who demand the very best, it pairs the revolutionary Avinox M2S Drive Unit with premium FOX suspension, SRAM Eagle Transmission wireless shifting and powerful Magura brakes for an uncompromising riding experience.

With a removable 800Wh battery, advanced connectivity features and adjustable geometry, the PR Carbon Pro is equally at home on epic alpine adventures, technical enduro trails and fast-flowing singletrack. At approximately 22kg, it offers an impressive balance of power, agility and range that sets a new benchmark for premium electric mountain bikes.

Pre-Order Information

The Amflow PR Carbon Pro is available for pre-order, with stock arriving soon. If you're looking for an Amflow eMTB available sooner, take a look at the Amflow PX Carbon eMTB. Riders seeking a more affordable option can also consider the Amflow PR Carbon, powered by the Avinox M2 motor.

Key Features

  • Lightweight full carbon trail and enduro frame
  • Avinox M2S Drive Unit with 130Nm nominal and 150Nm peak torque
  • Removable 800Wh battery
  • 12A fast charger included
  • FOX 36 Performance fork with 160mm travel
  • FOX Float X Performance rear shock with 150mm travel
  • SRAM S1000 Eagle Transmission wireless drivetrain
  • Magura Gustav Pro 4-piston hydraulic disc brakes
  • Mullet wheel setup (29" front / 27.5" rear)
  • Integrated 2-inch Avinox OLED display
  • Wireless handlebar controllers
  • Adjustable frame geometry
  • Approximate weight: 22kg

Revolutionary Avinox M2S Power System

At the heart of the PR Carbon Pro is the latest Avinox M2S Drive Unit, delivering class-leading performance with 130Nm of continuous torque and an incredible 150Nm peak output when maximum assistance is required.

The result is smooth yet explosive power delivery that feels natural on technical climbs while remaining highly responsive on demanding terrain.

Combined with the removable 800Wh battery, riders can confidently tackle long alpine adventures, bike park laps and all-day trail missions without worrying about range.

Fast recharging is handled by the included 12A charger, helping minimise downtime between rides.

Premium Suspension for Maximum Trail Control

The PR Carbon Pro is equipped with a high-performance FOX suspension package designed to excel across aggressive trail riding and enduro terrain.

Up front, the FOX 36 Performance fork delivers 160mm of travel, while the FOX Float X Performance rear shock provides 150mm of controlled rear travel for outstanding traction, support and confidence on technical descents.

This balanced suspension platform keeps the bike composed through rock gardens, drops and high-speed corners while remaining efficient on long climbs.

SRAM Eagle Transmission Wireless Shifting

Shifting duties are handled by the latest SRAM S1000 Eagle Transmission, delivering precise electronic gear changes under load.

The fully wireless drivetrain provides:

  • Fast, reliable shifting
  • Outstanding durability
  • Clean cockpit aesthetics
  • Excellent chain security
  • Wide 10-52T gear range for steep climbs and fast descents

Paired with the Avinox drive system, it creates one of the most advanced drivetrain packages available on a modern eMTB.

Mullet Wheel Setup for Ultimate Handling

The PR Carbon Pro uses a proven mullet wheel configuration, combining a 29-inch front wheel with a 27.5-inch rear wheel.

This setup delivers:

  • Increased rollover capability
  • Precise front-end steering
  • Improved rear-wheel agility
  • Better clearance on steep terrain
  • Confident handling through technical trails

Schwalbe's gravity-focused tyre combination adds exceptional grip, with a Magic Mary leading the way up front and an Albert providing fast-rolling traction at the rear.

Intelligent Connectivity and Smart Security

The Avinox ecosystem offers one of the most advanced rider interfaces available.

A fully integrated 2-inch OLED display provides clear ride information, while wireless handlebar controllers allow effortless mode selection without removing your hands from the bars.

Five intelligent riding modes, including Adaptive Auto Mode, continuously optimise motor assistance to suit changing terrain and rider input.

The bike also includes advanced anti-theft technology, featuring:

  • Password protection
  • Phone Key automatic unlocking
  • Motion detection alerts
  • Real-time location tracking

These connected features help keep both your bike and your riding experience smarter than ever before.

Built to Adapt to Every Rider

The Amflow PR Carbon Pro includes several thoughtful features that allow riders to customise their setup.

Adjustable geometry is achieved via interchangeable 0.5° and 1° headset cups together with a chainstay flip-chip, allowing handling characteristics to be fine-tuned for different trails and riding styles.

Additional accessories included with the bike include:

  • Torque wrench
  • Shock pump
  • Clear frame protection kit
  • Bottle cage
  • Two removable battery keys
  • Dropper travel reduction spacers
  • Quick start guide

Everything needed to get the most from your bike is included from day one.

Why Choose the Amflow PR Carbon Pro?

The Amflow PR Carbon Pro represents the next generation of premium electric mountain bikes. Combining a lightweight carbon frame with the immensely powerful Avinox M2S motor, premium FOX suspension and SRAM Eagle Transmission, it delivers an exceptional riding experience across every type of trail.

Whether you're chasing technical descents, conquering epic alpine climbs or simply looking for one of the most advanced eMTBs on the market, the PR Carbon Pro offers class-leading performance, intelligent technology and outstanding versatility in one beautifully engineered package.

Specifications

Frameset
Frame Amflow PR Carbon Pro Frame
Fork FOX 36 Performance (MY 2027)
160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Shock FOX Float X Performance (MY 2027)

2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
Travel 160mm (front) / 150mm (rear)
E-Bike
Motor Avinox M2S Drive Unit: Nominal 130N·m, peak 150N·m
Battery Avinox Removable Battery: 800Wh
Display Avinox Screen: 2-inch OLED Control Display
Charger Avinox Fast Charger: 12A/508W
Drivetrain
Shifter SRAM AXS Pod Controller
Rear Derailleur SRAM S1000 Eagle Transmission Derailleur
Cassette SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain SRAM Eagle 70 Transmission Flattop Chain
Crankset Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Power Supply Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Cockpit
Handlebar Amflow Enduro Alloy Handlebar, 40mm Rise, 800mm Width, 35mm Diameter, 5-degree upsweep, 9-degree backsweep
Grips Amflow Enduro Grip 2 Lock-on Grips
Stem Amflow Mountain Bike Split Stem, Length: 35mm, Clamping Diameter: 35mm
Brakes
Brake - Front Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Brake - Rear Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Disc Brake Rotors Magura Sensor Rotor (203mm, 2.5mm)
Wheelset
Wheelset Amflow XMA-30 Mullet Version
Rim - Front Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rim - Rear Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes SAPIM E-Light
Hub - Front Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Hub - Rear Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls, 36T, HG
Tyres - Front Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Tyres - Rear Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Other
Saddle Amflow Mountain Saddle Titanium
Seatpost Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm), M/L frame: 190mm, XL frame: 210mm, XXL frame: 230mm
Extras
Front Light Avinox Front Light
Bottle Cage Amflow Bottle Cage
Torque Wrench Included
Mudguard FOX 36 Mud Guard (Short)
Frame Protection Clear Frame Protection Film
Shock Pump Included
Removable Battery Keys 2x Included

Notable Information
Weight 22kg
Carry Capacity 125kg
Warranty PR Carbon Frame - 5 years
Avinox M2S Drive System - 2 years

*Subject to technical modification without notice. Errors and omissions excepted.

Geometry



 Geometry M L XL XXL
A Reach 455mm 478mm 503mm 528mm
B Stack Height 622.1mm 632.2mm 645.9mm 659mm
C Standover Height 780mm 785mm 790mm 795mm
D Front Center 793.1mm 820.9mm 852mm 883.9mm
E Fork Length 570mm 570mm 570mm 570mm
F Wheelbase 1231.3mm 1259.1mm 1290.2mm 1322.1mm
G Chainstay Length 438/451mm 438/451mm 438/451mm 438/451mm
H Bottom Bracket Drop 10.5/23.7mm 10.5/23.7mm 10.5/23.7mm 10.5/23.7mm
I Bottom Bracket Height 345.5mm 345.5mm 345.5mm 345.5mm
J Effective Top Tube Length 586.9mm 619.7mm 642.8mm 672.2mm
K Head Tube Angle 64.2° 64.2° 64.2° 64.2°
L Head Tube Length 109mm 120mm 135mm 150mm
M Actual Seat Tube Angle 72° 72° 72° 72°
N Effective Seat Tube Angle 78° 78° 78° 77.7°
O Seat Tube Height 415mm 427mm 447mm 466mm



Sizing

Size Height (cm) Height (inch)
M 162 - 178 5'4 - 5'10''
L 170 - 185 5'7 - 6'1''
XL 175 - 191 5'9 - 6'3''
XXL 185 - 201 6'1 - 6'7''



Reviews

Discover what the cycling industry is saying about the Amflow PX Carbon Pro eMTB 2026. From in-depth ride impressions to technical breakdowns and long-term testing, these reviews give you a closer look at the bike’s performance, handling, motor system, and trail capability. Explore expert opinions and real-world insights to help decide if the Amflow PX Carbon is the right eMTB for your next adventure.

Amflow Stamp their Authority in the E-MTB World with new PX and PR Models - Australian Mountain Bike Magazine

Once again, Amflow is leading the charge with the release of the PX and PR models. What they are delivering is more power at a lighter weight, with a heap of new features. Amflow have clearly listened to rider feedback, with an emphasis on adjustable geometry and more powerful braking systems – all in a claimed 20kg weight package. We are testing out the new Amflow PX Carbon Pro, stay tuned for updates.

Check out the article here

The New AMFLOW PX Carbon Pro in test – The answer to its predecessor, now with the new Avinox M2S motor? - E-MOUNTAINBIKE Magazine

The sky is the limit? With the new AMFLOW PX Carbon Pro and the all-new Avinox M2S motor system, the Chinese brand is aiming for the stars – pushing hard to claim a spot at the very top of the performance spectrum. But does it actually deliver? Is the AMFLOW PX the new benchmark for technical climbs? After 1,000 km of punishing testing, here’s our verdict.

Check out the article here

New Amflow PX Carbon Pro - Could you handle the power?

FAQ - Amflow PX Carbon Pro eMTB 2026

Is the Amflow PX Carbon Pro 2026 a full carbon electric mountain bike?

Yes. The Amflow PX Carbon Pro features a lightweight full carbon fibre frame designed for aggressive trail and enduro riding. Combined with premium carbon components and advanced suspension, it delivers exceptional stiffness, strength and low overall weight for improved climbing and descending performance.

What motor does the Amflow PX Carbon Pro use?

The 2026 Amflow PX Carbon Pro is powered by the latest Avinox M2S drive system, delivering up to 150Nm of peak torque and 1,500W of peak power when required. The intelligent motor offers smooth assistance, multiple riding modes and impressive climbing capability across technical terrain.

What battery does the Amflow PX Carbon Pro have?

The Amflow PX Carbon Pro is equipped with a fully integrated 700Wh battery, providing excellent range for trail rides, all-day adventures and challenging mountain terrain. The system also supports ultra-fast charging, helping you spend less time waiting and more time riding.

How much does the Amflow PX Carbon Pro weigh?

The Amflow PX Carbon Pro is one of the lightest high-performance full-power electric mountain bikes available, weighing from approximately 20.6kg (size dependent). Its low weight makes the bike feel agile, responsive and easier to handle on technical singletrack

What type of riding is the Amflow PX Carbon Pro designed for?

The Amflow PX Carbon Pro is built for trail, all-mountain and enduro riding. With 160mm front suspension, a premium rear shock, adjustable geometry and powerful motor assistance, it is equally at home climbing steep fire roads, navigating technical descents and tackling long backcountry adventures.

What makes the Amflow PX Carbon Pro different from the standard PX Carbon?

Both models share the same carbon frame, Avinox M2S motor and 700Wh battery. The PX Carbon Pro upgrades to premium components including FOX Factory suspension, carbon handlebars, higher-end finishing kit and additional premium features, providing greater adjustability, lower weight and enhanced performance for aggressive riding
