Trek FX+ 2 Stagger - Satin Trek Black

$3,599.00
Currently out of stock. Please call 03 9529 3752

Description

Discover Urban Exploration: Trek FX+ 2 Stagger - Satin Trek Black

Elevate Your City Rides

The Trek FX+ 2 Stagger is your gateway to faster and more enjoyable everyday excursions in the city. This lightweight electric bike features an intuitive pedal-assist system that adds a capable boost to your rides, making city exploration extra exciting and conquering hills a breeze. With practical accessories like a rack and mudguards included, the FX+ 2 Stagger offers unmatched versatility for your daily commutes, errands, and joy rides.

Key Features:

  1. Stagger Design: The lightweight aluminium frame with a stagger design makes it easier to hop on and off, offering enhanced convenience and accessibility for riders of all levels.

  2. Efficient Pedal-Assist System: Trek's proprietary pedal-assist system boasts a powerful hub motor (250 W, 40 Nm) that provides up to 20 mph (25 km/h in Europe), delivering a natural ride feel and a simple LED remote that indicates your assist setting.

  3. Long-Lasting Battery: Equipped with a 250 Wh battery, the FX+ 2 Stagger offers a generous range of up to 55 kilometres per charge, ensuring you can explore your city without worrying about running out of power.

  4. Versatile Accessories: Enjoy the convenience of included accessories such as mudguards, integrated lights powered by the battery, a MIK-compatible rear rack, and a kickstand, ensuring your bike is ready for any adventure.

  5. Enhanced Safety: With fast-rolling 700c wheels, stable 40c tyres with reflective sidewalls, hydraulic disc brakes, and integrated lights, the FX+ 2 Stagger delivers superior stability, control, and visibility for a safe and enjoyable riding experience.

Why Choose the FX+ 2 Stagger:

  • Perfect for riders seeking a lightweight and user-friendly city e-bike that enhances daily commutes, errands, and leisure rides.
  • Features Trek's advanced pedal-assist system with a hub motor for a natural ride feel, making every journey smooth and exhilarating.
  • Comes fully equipped with essential accessories like mudguards, lights, and a MIK-compatible rear rack, ensuring you're prepared for any adventure that comes your way.

Why You'll Love It:

  • Experience the convenience and accessibility of the stagger design, making it easier to hop on and off the bike effortlessly.
  • Enjoy the thrill of effortless city exploration with Trek's lightest city e-bike, offering unparalleled manoeuvrability and convenience.
  • Ride with confidence knowing that the FX+ 2 Stagger comes fully equipped with essential accessories, ensuring you're ready for any urban adventure.
  • Extend your range effortlessly with the option to add a 250 Wh plug-and-play Range Extender battery, allowing you to double your riding distance and explore even further.

Unleash the freedom of urban exploration with the Trek FX+ 2 Stagger - Satin Trek Black, and discover a new level of excitement on your city rides.


Specification

Trek FX+ 2 Stagger Specification

FRAMESET
Frame
Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, kickstand mount
Fork FX+ alloy, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm bolt-on skewer


WHEELS
Hub Front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer Front 135x5 mm bolt-on
Hub Rear Hyena hub drive motor, 40 Nm, 250 W
Rim Bontrager Connection, alloy, double-wall, 32-hole, Scharader valve
Tyre Bontrager H@ Comp, reflective strip, wire bead, 30 tpi, 700x40 mm
Max Tyre Size 700x50 mm without mudguards, 700x45mm with mudguards


E-SYSTEM
Battery
250 Wh, integrated in down tube
Charger 2A, 42V output, 100V - 240V AC input
Computer LED display


DRIVETRAIN
Shifter
Shimano Altus M2010, 9-speed
Rear Derailleur Shimano Altus M2000, long cage
Crank

Size: S, M
ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length

Size: L
ProWheel Pro alloy, 42T narrow-wide steel ring, 175 mm length

Bottom Bracket Torque sensor, threaded, 122.5 mm spindle
Cassette Shimano HG200, 11-36, 9-speed
Chain KMC X9
Pedal Bontrager City, pedals
Max. chainring size 1x: 42T


COMPONENTS
Saddle
Bontrager Sport
Seatpost

Size: S, M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length

Size: L
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

Handlebar

Size: S, M
Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width

Size: L
Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width

Grips Bontrager XR Endurance Comp. lock-on
Stem

Size: S, M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length

Size: L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length

Brake Shimano hydraulic disc, MT200 lever, UR300 calliper
Brake Rotor Shimano RT26, 6-bolt, 160 mm
Rotor Size Max brake rotor sizes: 160 mm front & rear


ACCESSORIES
Light

Size: S, M, L
Herrmans MR4, 120-lumen LED

Size: S, M, L
Spanninga Solo

Kickstand Alloy, rear mount
Mudguard

Size: S, M, L
SKS plastic, rear

Size: S, M, L
SKS plastic, front


WEIGHT
Weight
M - 17.82 kg/ 39.29 lbs
Weigh Limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 136 kg (300 lb)


Sizing

Trek FX+ 2 Stagger - Sizing

 Size Rider Height Inseam
S 155 - 165 cm (5'1"- 5'5") 72 - 78 cm (28" - 31")
M 165 - 175 cm (5'5" - 5'9") 77 - 83 cm (30" - 33")
175 - 186 cm (5'9" - 6'1") 82 - 88 cm (32" - 35")


Geometry

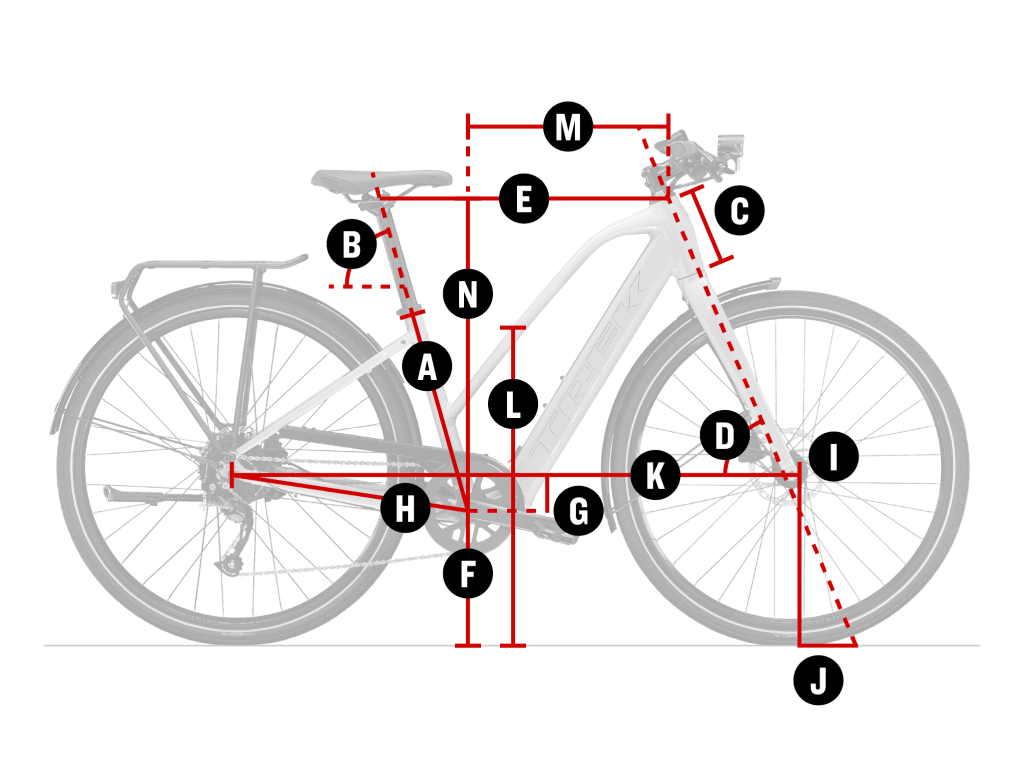

Trek FX+2 Geometry

All measurements are provided in cm unless otherwise stated.

Sizing Table

Frame Size Number  45 cm 50 cm 55 cm
Frame Size Letter S M L
Wheel Size 700c 700c 700c
A - Seat Tube 40.8
46.3 50.7
B - Seat Tube Angle 73.5°
73.0°
73.0
C - Head Tube Length 15.5
17.0
20.0
D - Head Angle 70.0°
70.5°
71.0°
E - Effective Top Tube 56.9
57.4
59.2
F - Bottom Bracket Height 28.6
28.6
28.6
G - Bottom Bracket Drop 7.0 7.0 7.0
H - Chainstay Length 46.8 46.8 46.8
I - Offset 5.0 5.0 5.0
J - Trail 7.6 7.3 6.9
K - Wheelbase 109.2
109.5 110.9
L - Standover 65.5 67.2 69.3
M - Frame Reach 38.2 38.5 39.3
N - Frame Stack 60.4 62.0 65.0
