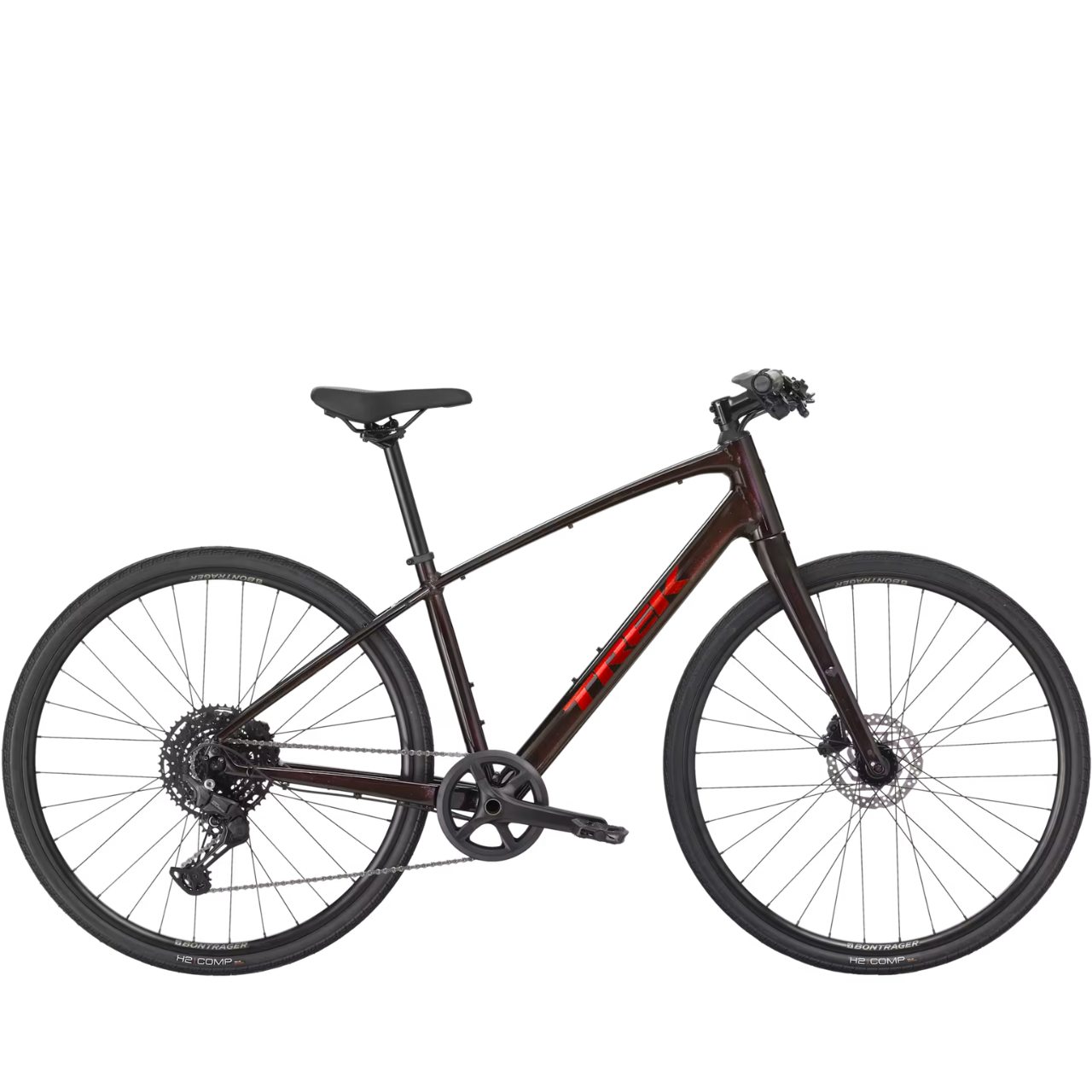

Trek FX 3 Stepover - Gen 4 - Dark Carmine

$1,399.00
Click&Collect
No Delivery Available

Description

Trek FX 3 Stepover Gen 4 — Built for Performance, Comfort and Everyday Versatility

The Trek FX 3 Stepover Gen 4 is a high-performance hybrid bike designed to make every ride smoother, faster, and more enjoyable. With its lightweight Alpha Gold Aluminium frame and easy step-through design, you’ll enjoy effortless mounting and confident control wherever you go — from city streets to scenic rail trails.

A carbon fork helps absorb road vibrations for a more comfortable ride, while the 1x drivetrain simplifies shifting without sacrificing range. Add in powerful hydraulic disc brakes that deliver reliable stopping power in any weather, and you’ve got a bike that performs as beautifully as it looks.

The FX 3 also features practical details like internal cable routing and integrated mounts for racks, mudguards, and a kickstand — ready to be customised for commuting, fitness, or weekend adventures. Whether you’re riding to work or exploring Melbourne’s best trails, the Trek FX 3 Stepover is your ultimate all-rounder.

Specification

Frameset
Frame Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
Fork FX carbon, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR
Drivetrain
Rear Derailleur Shimano CUES U6000 GS
Crank ProWheel Crankset, 2-piece with black steel narrow/wide chainring - 40T narrow-wide steel ring, 170mm length (XS/S/M) - 175mm length (L/XL)
Shifters Shimano CUES U6000 w/optical gear display, 10-speed
Cassette Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain Shimano LG500
Brakes Shimano hydraulic disc, MT201 lever, UR300 calliper
Brake Type Hydraulic Disc
Wheels
Rims Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Front - Hub Formula DC-20, alloy, 6-bolt, 100x5mm
Rear - Hub Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Tyres Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Components
Stem Size: XS, S, M
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: L, XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 100mm length
Handlebar Size: XS, S, M
Bontrager alloy, 31.8mm, 15mm rise, 600mm width
Size: L, XL
Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Saddle Bontrager H1
Seatpost Size: XS, S, M
Bontrager SSR 2-Bolt, 27.2mm, 12mm Offset, 330mm Length
Size: L, XL
Bontrager Alloy, 27.2mm, 12mm Offset, 400mm Length
Pedals Bontrager City pedals
Grips Trek Ergonomic Comp, lock-on


*Trek reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Sizing

How tall are you?

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

What is your inside leg?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Size Rider Height Inseam
XS 147 - 155 cm (4'10" - 5'1") 69 - 73 cm (27" - 29")
S 155 - 165 cm  (5'1" - 5'5") 72 - 78 cm (28" - 31")
M 165 - 175 (5'5" - 5'9") 77 - 83 cm (30" - 33")
L 175 - 186 cm (5'9" - 6'1") 82 - 88 cm (32" - 35")
XL 186 - 197 cm (6'1" - 6'6") 87 - 93 cm (34" - 37")
