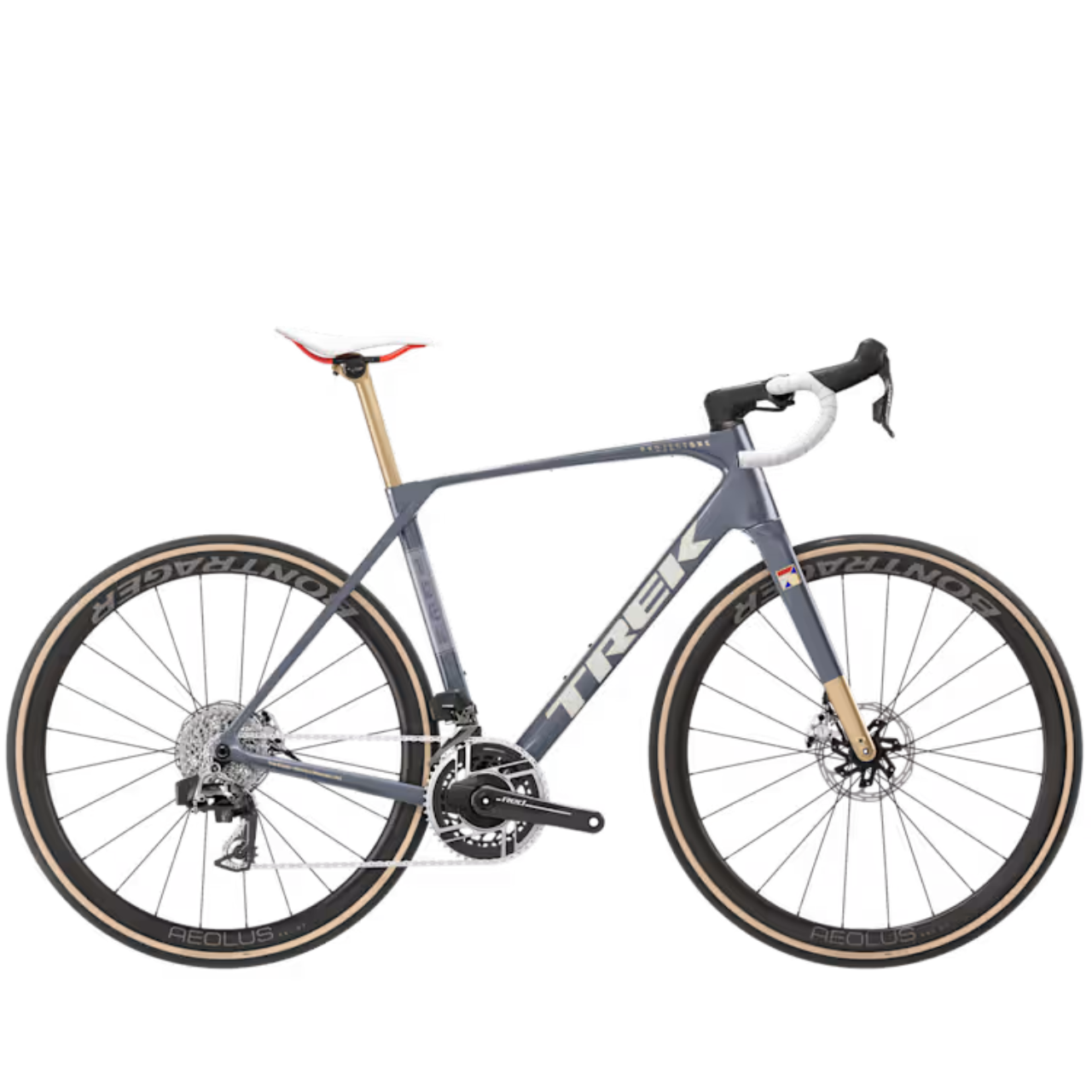

Trek Domane SLR 9 AXS Gen 5 - No. 76
The Trek Domane SLR 9 AXS No. 76 Gen 5 is an exclusive anniversary edition of Trek’s flagship endurance road bike, combining the highest-level 900 Series OCLV Carbon frame with a race-ready SRAM RED AXS electronic groupset and integrated power meter. Built for riders who want exceptional speed, comfort and long-distance capability, it delivers premium performance across everything from fast road rides to demanding endurance events.
A lightweight carbon build, wide 35mm tyres, aerodynamic carbon wheels and a refined endurance geometry make the Domane SLR 9 AXS No. 76 equally capable on fast roads and all-day adventures. With integrated storage and fender mounts, it retains the versatility that has made the Domane a benchmark endurance road bike.
Key Features
- 900 Series OCLV Carbon frame for an exceptionally lightweight and responsive ride
- Domane SLR Gen 5 geometry balances speed, stability and long-distance comfort
- SRAM RED AXS E1 2x12-speed wireless electronic drivetrain
- Integrated SRAM power meter for accurate power data and training
- SRAM RED hydraulic disc brakes for powerful, controlled braking
- Bontrager Aeolus RSL 37 OCLV Carbon wheels with Tubeless Ready rims
- Bontrager Kwaremont RSL 700x35mm tyres with GR puncture protection
- Bontrager RSL carbon seatpost designed to provide additional compliance
- Bontrager Pro Riser carbon handlebar with 20mm rise
- 40mm maximum tyre clearance for added comfort and versatility
- Integrated frame bag and fender mounts for longer rides and changing conditions
- T47 threaded bottom bracket and UDH rear axle for durability and easy servicing
Lightweight Carbon Performance
The 900 Series OCLV Carbon frame represents Trek’s highest level of carbon construction, delivering an exceptional balance of low weight, stiffness and ride quality. Internal cable routing and a clean integrated design further enhance the premium performance of the Domane SLR.
Road-Smoothing Comfort
The Domane SLR Gen 5 is designed around long-distance comfort without compromising speed. The compliant carbon construction, Bontrager RSL carbon seatpost and wide 35mm tyres help absorb road imperfections while maintaining confident handling and efficient power transfer.
SRAM RED AXS Performance
The SRAM RED AXS E1 2x12-speed drivetrain provides fast, precise wireless electronic shifting with a wide 10-36T cassette for both high-speed riding and challenging climbs. The integrated SRAM power meter provides accurate power data for training and performance tracking.
Aeolus RSL Carbon Wheels
The Bontrager Aeolus RSL 37 OCLV Carbon wheels provide a lightweight, aerodynamic wheelset designed to complement the Domane's endurance-focused performance. The 37mm rim depth offers a strong balance between speed, stability and low weight, while Tubeless Ready construction allows for tubeless tyre setups.
Control and Handling
The Domane SLR combines responsive handling with the stability expected from a premium endurance road bike. The Bontrager Pro Riser carbon handlebar, RCS Pro stem and refined Gen 5 geometry provide a confident riding position for everything from fast group rides to long days in the saddle.
Versatility for Long-Distance Riding
With 40mm maximum tyre clearance, integrated frame bag mounts and fender compatibility, the Domane SLR is built for more than just short road rides. It can be configured for everything from fast endurance training to long-distance adventures where comfort and carrying capacity matter.
Specification
| Category | Specification |
|---|---|
| Frame | 900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle |
| Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Drivetrain | SRAM RED AXS E1, 2x12-speed wireless electronic |
| Shifters | SRAM RED AXS E1 |
| Front Derailleur | SRAM RED AXS E1, braze-on |
| Rear Derailleur | SRAM RED AXS E1, 36T maximum cog |
| Crankset | SRAM RED AXS E1, integrated power meter, 48/35T, DUB |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM RED XG-1290 E1, 10-36T, 12-speed |
| Chain | SRAM RED E1, 12/13-speed |
| Brakes | SRAM RED hydraulic disc |
| Brake Rotors | SRAM Paceline X, Centerlock, 160mm |
| Front Wheel | Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle |
| Rear Wheel | Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
| Tyres | Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 TPI, 700x35mm |
| Tube | Pirelli P Zero SmarTube, TPU |
| Maximum Tyre Size | 40mm |
| Handlebar | Bontrager Pro Riser, carbon, 20mm rise, 31.8mm |
| Stem | Trek RCS Pro, -7 degree |
| Seatpost | Bontrager RSL carbon, 27.2mm, 5mm offset |
| Saddle | Aeolus RSL, carbon rails, 145mm width |
| Axles | 12x100mm front, 12x142mm rear |
| Battery | SRAM AXS battery pack with charger |
| Weight | 7.19kg claimed, size ML with tubes |
| Maximum System Weight | 125kg including bike, rider and cargo |
| Generation | Gen 5 |
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| XS (47cm) | 143–158cm | 67–74cm |
| S (50cm) | 158–162cm | 74–76cm |
| M (52–54cm) | 162–173cm | 76–81cm |
| ML (56cm) | 173–179cm | 81–84cm |
| L (58cm) | 179–188cm | 84–88cm |
| XL (60–62cm) | 188–213cm | 88–100cm |
Sizing is a guide only. Rider proportions, flexibility and riding style can affect the ideal frame size. We recommend a professional bike fit where possible.
Specifications are subject to change by the manufacturer without notice. Component availability may result in substitutions of equal or greater specification.
