Description

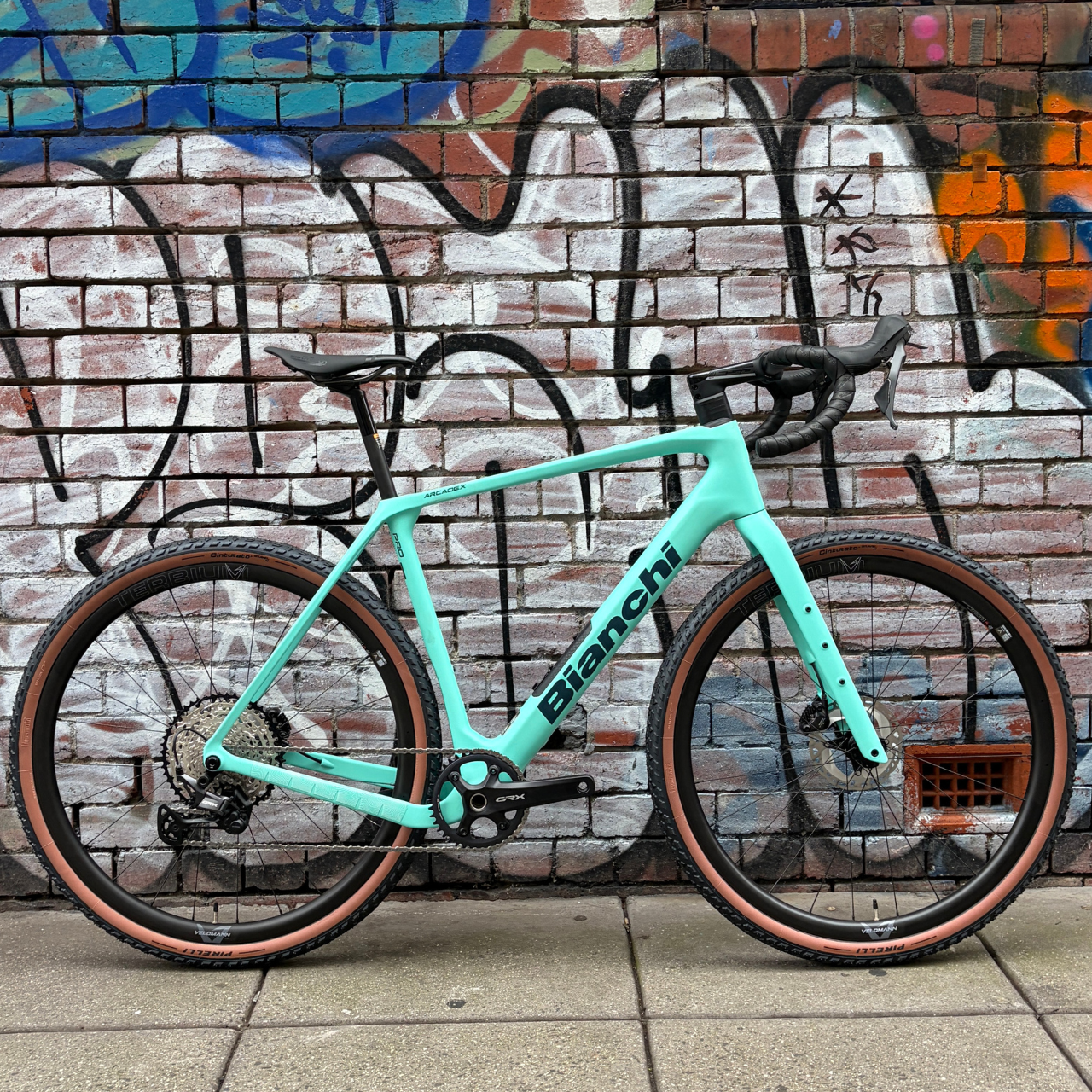

Bianchi Arcadex Pro - Shimano GRX - Matt Celeste
The Bianchi Arcadex Pro Shimano GRX in Matt Celeste is built for riders who want to push beyond the ordinary and explore further off the beaten path. Designed for adventure gravel riding and bikepacking, the Arcadex blends lightweight carbon performance with endurance comfort and impressive tyre clearance, creating a highly capable gravel machine ready for long distance exploration.
Key Features
- Lightweight carbon gravel frame with endurance geometry
- Shimano GRX 1x12 speed gravel drivetrain
- Shimano hydraulic disc brakes with IceTech rotors
- Velomann Terbium carbon tubeless ready wheelset
- Massive tyre clearance up to 700 x 50c
- Fully integrated internal cable routing
- Carbon seatpost for added comfort and compliance
- Pirelli Cinturato Gravel M tyres with tan sidewalls
Lightweight Carbon Frame Built for Adventure
Constructed from Bianchi’s advanced carbon fibre platform, the Arcadex frame delivers a smooth and efficient ride feel while maintaining stiffness for responsive acceleration. The endurance focused geometry is designed to maximise comfort over long distances without sacrificing gravel riding performance.
Ready for Big Tyres and Bigger Adventures
With clearance for up to 700 x 50c tyres, the Arcadex is built to handle rough gravel roads, bikepacking routes, and unpredictable terrain with confidence. The frame is also compatible with clip on mudguards when running 45c tyres, adding extra versatility for touring and wet weather riding.
Shimano GRX Gravel Specific Drivetrain
The Shimano GRX 820 and 822 1x12 speed drivetrain is purpose built for gravel riding, delivering reliable shifting and wide range gearing for steep climbs and technical terrain. The 11 to 51T cassette provides excellent versatility across varied riding conditions.
Confident Hydraulic Disc Braking
Shimano GRX hydraulic disc brakes paired with Shimano IceTech rotors deliver powerful and consistent braking performance across gravel descents, wet roads, and rough surfaces, helping riders stay in control in demanding conditions.
Carbon Wheels Designed for Gravel Riding
The Velomann Terbium carbon wheelset combines lightweight performance with durability and tubeless ready capability. Paired with Pirelli Cinturato Gravel M tyres, the setup offers excellent grip, comfort, and rolling efficiency across loose and mixed terrain.
Integrated Cockpit and Comfortable Finishing Kit
Internal cable routing creates a clean and refined cockpit appearance while the gravel specific handlebar with 16 degree flare improves stability and control off road. A carbon seatpost and Velomann Mitora saddle help reduce fatigue during long adventure rides.
Built for Riders Chasing Freedom Beyond the Road
Whether bikepacking across remote terrain, exploring gravel backroads, or taking on endurance events, the Bianchi Arcadex Pro is built to deliver comfort, capability, and confidence for every adventure.
Specification
| Frameset | |
|
Frame |
Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility: 38T-44T Minimun Chainline: 45.5 mm Tire Clearance: ETRTO 622-50mm SeatPost O.D: Ø27.2 mm Material: Epoxy - SM Carbon Fiber Composite |
| Headset | Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal |
| Fork | Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8" Material: Epoxy - SM Carbon Fiber Composite |
| Drivetrain | |
| Shifter | Shimano GRX 820 ST/BL-RX820 |
| Rear Derailleur | Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T |
| Front Derailleur | N/A |
| Crankset | Shimano GRX 820 FC-RX820-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm- XL(61) |
| Bottom Bracket | Shimano SM-BB72-41B, press fit |
| Chain | Shimano CN-M7100 |
| Cassette/Freewheel | Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline |
| Braking System | |
| Brake | Shimano Hydraulic Brake, BR-RX820 |
| Disc Rotor | Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear) |
| Wheelset | |
| Rim/Wheelset | Velomann Terbium clincher and tubeless ready Rim Diameter: 700C Material: Carbon Rim Height: 30 mm Inner Wigth Channel: 25 mm |
| Tyre | Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall |
| Components | |
| Stem | FSA ACR / Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8" (28.6mm) HB interface Diameter: 1-1/4" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm- LG(58),120m -XL(61) |
| Handlebar | Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61) |
| Grip/Tape | Bianchi Hexagon tape 2.5mm thickness, Full black |
| Seatpost | Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61) |
| Saddle | Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel lenght: 250mm width: 149mm weight: 230g ± 2 |
*Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
Geometry
| SIZE | A | B | C | D | E | F | G | G1 | H | I | X | Y | WB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 410 | 527 | 430 | 75 | 90 | 601 | 74.5° | 70.5° | 51 | 425 | 376 | 544 | 1020 |
| S | 448 | 545 | 430 | 75 | 110 | 615 | 74° | 70.5° | 51 | 425 | 383 | 563 | 1034 |
| M | 485 | 564 | 430 | 75 | 130 | 625 | 73.5° | 71° | 51 | 425 | 391 | 584 | 1044 |
| L | 515 | 583 | 430 | 75 | 155 | 639 | 73.5° | 71.5° | 51 | 425 | 402 | 610 | 1059 |
| XL | 550 | 605 | 432 | 75 | 185 | 656 | 73° | 71.5° | 51 | 425 | 410 | 638 | 1077 |
